Aerial Insulated Cable

Aerial Insulated Cable
Aerial Insulated Cable
Aerial Insulated Cable
Aerial Insulated Cable

Product Description:

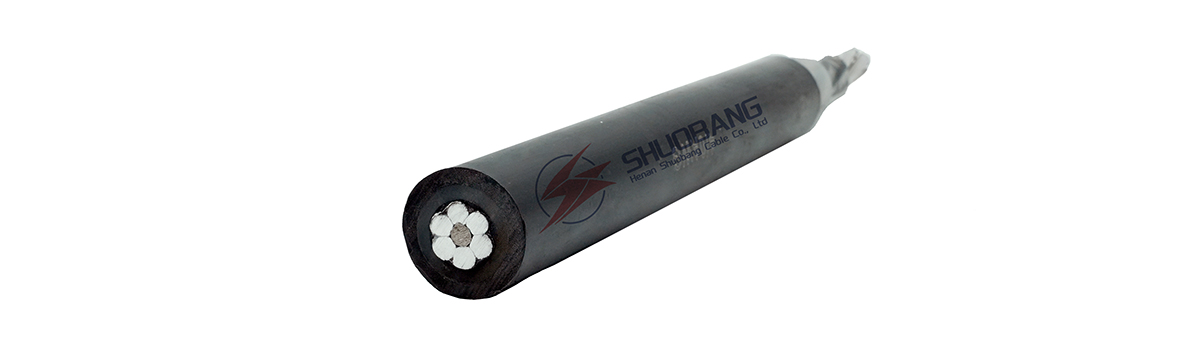

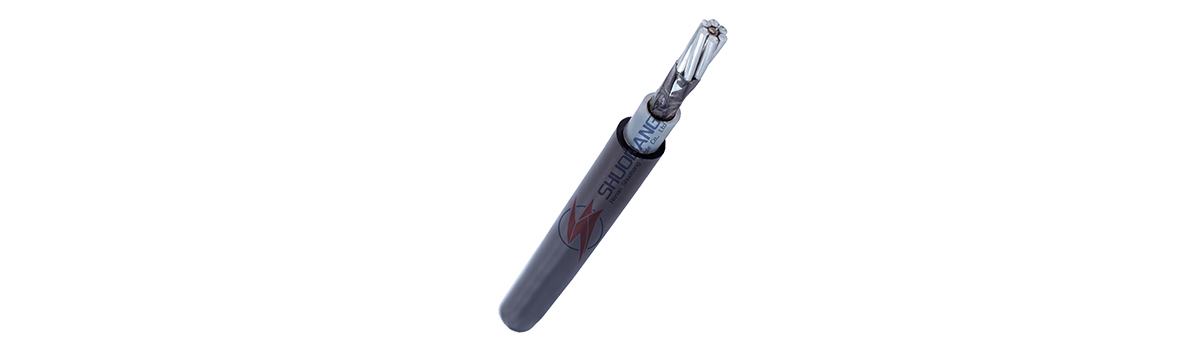

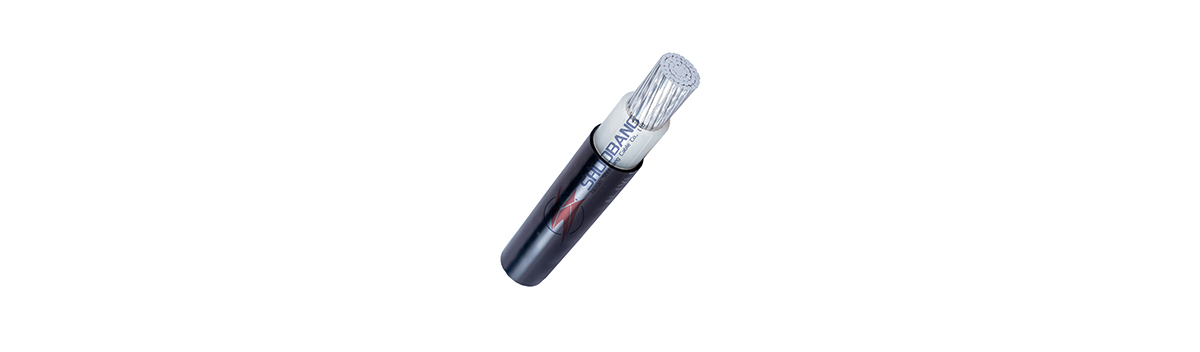

11KV 33KV Aerial Bundled Cable is a new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line. Used as bare overhead transmission cable and as primary and secondary distribution cable.

APPLICATION：

ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. It improves the safety and reliance of electrified wire netting. The products primarily used for the distribution of electrical energy under normal conditions of overhead (aerial) installations.

Conductor properties：

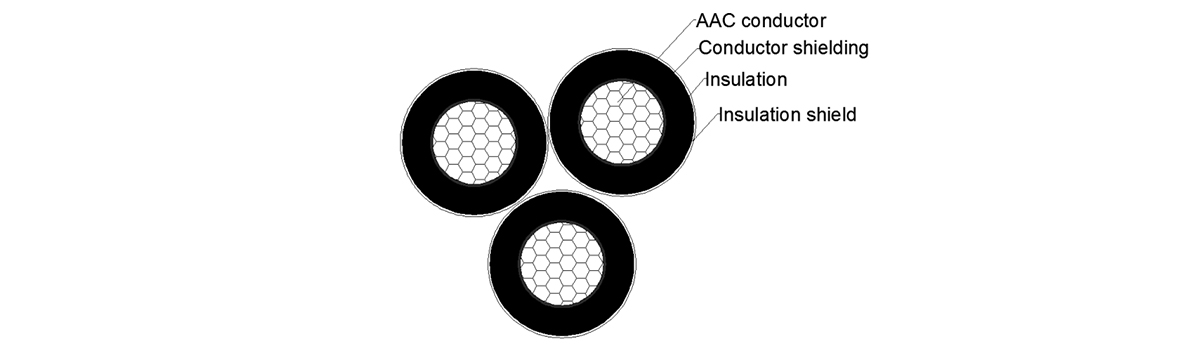

The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer etc.The conductors are stranded,circular compressed aluminum, aluminum-alloy, copper. The conductor screen is the extruded Semi-conducting conductor shield in Black.

Insulation layer：

And the outer Insulation is mainly thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE) in Black with Weather or UV resistant. This standard covers both thermoplastic and cross linked polyethylene constructions, rated for 75°C or 90°C normal service temperature



6.35-11 kV ABC for Overhead Dis
Number of Cores
xNominalCross
Section		 Phase Conductor Messenger Suspension Unit Continuous
current
rating
at
300C
ambient
temp
Stranding Nominal
Sectional
Area		 Maximum
Conductor
Resistance		 Stranding Nominal
Sectional
Area		 Breaking
Load
No.xmm^2 No.xmm mm^2 Ω/Km No.xmm mm^2 KN A
3x50+1X25 19/1.78 50 0.641 7/3.0 50 60 116
3x70+1x50 19/.14 70 0.443 7/3.15 50 62 210
3X95+1x50 19/2.52 95 0.32 7/3.0 50 60 173
3X185+1X120 37/2.52 185 0.164 7/4.67 120 150 259
3x150 +1X50 37/2.25 150 0.206 7/3.15 50 62 365
3X240+1x50 61/2.25 240 0.125 7/3.15 50 62 500
IEC 60502 19-33 kV ABC for Over
Number of Cores
xNominal Cross
Section		 Phase Conductor Messenger Suspension Unit Continuous
current rating
at 300C ambient
temp
Stranding Nominal
Sectional Area		 Maximum
Conductor
Resistance		 Stranding Nominal
Sectional Area		 Breaking
Load
No.xmm^2 No.xmm mm^2 Ω/Km No.xmm mm^2 KN A
3x50+1x50 19/1.78 50 0.641 7/3.0 50 60 165
3X150+1x50 37/2.25 150 0.206 7/3.0 50 60 315
3X185+1X70 37/2.52 185 0.164 7/3.57 70 91 355
3x70+1x50 19/2.14 7 0.443 7/3.15 50 62 250
3X150+1x50 37/2.25 150 0.206 7/3.15 50 62 370
10kV Aerial Aluminium Insulated
Nominal
Size		 Min No.
of Wires		 Approx.
Diameter of Conductor		 Min
Thickness of Conductor Screen
(Approx)		 Nominal Thickness of
Insulation		 Nominal Max DC Resistance at
20 0C		 Min Breaking Load
Reduced Nominal Thickness of Insulation
Screen		 AAC AAAC AAC AAAC
mm2 No. mm mm mm mm mm Ω/km Ω/km N N
10 6 3.8 0.5 - 3.4 - 3.08 3.574 - -
16 6 4.8 0.5 - 3.4 - 1.91 2.217 - -
25 6 6 0.5 2.5 3.4 1 1.2 1.393 3762 6284
35 6 7 0.5 2.5 3.4 1 0.868 1.007 5177 8800
50 6 8.3 0.5 2.5 3.4 1 0.641 0.744 7011 12569
70 12 10 0.5 2.5 3.4 1 0.443 0.514 10354 17596
95 15 11.6 0.6 2.5 3.4 1 0.32 0.371 13727 23880
120 18 13 0.6 2.5 3.4 1 0.253 0.294 17339 30164
150 18 14.6 0.6 2.5 3.4 1 0.206 0.239 21033 37706
185 30 16.2 0.6 2.5 3.4 1 0.164 0.19 26732 46503
240 34 18.4 0.6 2.5 3.4 1 0.125 0.145 34679 60329
300 34 20.6 0.6 2.5 3.4 1 0.1 0.116 43349 75411
400 53 23.8    0.6 2.5 3.4 1 0.0778 0.0904 55707 100548
10kV Aerial Copper Insulated Ca
minal Size Min. No.
of Wires		 Approx.
Diameter of
Conductor		 Min.
Conductor
(Approx.)		 Nominal Thickness of Insulation Nominal
Thickness of
Insulation
Screen		 Max DC Resistance at 20 0C Min. Breaking Load
Reduced Nominal Hard Copper Soft Copper Hard Copper
mm2 No. mm mm mm mm mm Ω/km Ω/km N
10 6 3.8 0.5 - 3.4 - - 1.83 -
16 6 4.8 0.5 - 3.4 - - 1.15 -
25 6 6 0.5 2.5 3.4 1 0.749 0.727 846
35 6 7 0.5 2.5 3.4 1 0.54 0.524 1173
50 6 8.3 0.5 2.5 3.4 1 0.399 0.387 1605
70 12 10 0.5 2.5 3.4 1 0.276 0.268 2346
95 15 11.6 0.6 2.5 3.4 1 0.199 0.193 3175
120 18 13 0.6 2.5 3.4 1 0.158 0.153 3991
150 18 14.6 0.6 2.5 3.4 1 0.128 4950
185 30 16.2 0.6 2.5 3.4 1 0.1021 - 6184
240 34 18.4 0.6 2.5 3.4 1 0.0777 - 7982
300 34 20.6 0.6 2.5 3.4 1 0.0619 - 99788



Insulated AAAC Covered Conductor
COVERED AAC ALUMINUM CONDUCTOR, CONCENTRIC-LAY-STRANDED
CODE WORD (1) SIZE AWG OR kcmil NO. OF WIRES COVER THKN. INCHES APPROX. CABLE O.D. TOTAL RATED STRENGTH LBS AMPACITY
AL LLDPE XLPE PE XLPE
Apple 6 1 0.03 0.224 24.6 33.4 33.4 440 105 120
Plum 6 7 0.03 0.238 24.6 33.8 33.8 505 105 120
Pear 4 1 0.03 0.266 39.1 50.3 50.3 710 140 160
Apricot 4 7 0.03 0.284 39.1 50.9 50.9 795 140 160
Cherry 2 1 0.045 0.35 62.2 83.2 83.2 1105 185 210
Peach 2 7 0.045 0.372 62.2 83.9 83.9 1215 185 210
Nectarine 1 7 0.045 0.407 78.4 104 104 1475 200 230
Quince 1/0 7 0.06 0.476 99 133.5 133.5 1790 245 280
Orange 2/0 7 0.06 0.521 124.8 163.5 163.5 2260 290 335
Fig 3/0 7 0.06 0.569 157.3 200.6 200.6 2735 325 375
Olive 4/0 7 0.06 0.626 198.3 247 247 3445 375 430
Mulberry 266.8 19 0.06 0.694 250 304 304 4475 430 500
Silverbelt 266.8 19 0.08 0.733 250 322 322 4475 430 500
Anona 336.4 19 0.06 0.764 315 375 375 5535 500 580
Crabapple 336.4 19 0.08 0.804 315 395 395 5535 495 575
Chinquapin 350 19 0.06 0.778 328 389 389 5750 510 595
Ginkgo 350 19 0.08 0.818 328 410 410 5750 510 595
Molles 397.5 19 0.08 0.86 373 459 459 6400 545 640
Ash 400 19 0.08 0.862 375 462 462 6440 550 640
Huckleberry 477 37 0.08 0.93 447 543 543 7820 610 715
Paw Paw 556.5 37 0.08 0.991 522 625 625 8950 675 790
Breadfruit 636 61 0.095 1.08 596 724 724 10200 725 850
Persimmon 795 61 0.095 1.185 745 888 888 12900 830 975
Grapefruit 1033.5 61 0.095 1.325 969 1132 1132 16400 890 1055
Mango 1590 61 0.11 1.629 1490 1726 1726 24300 1240 1470

Pre sales

Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
pro_con_03 Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
pro_con_06 Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Sampling inspection items: DC resistance of cable conductors; Finished cable withstand voltage test; Single wire diameter and deviation of conductor; Average insulation thickness and thinnest point; Average thickness and thinnest part of the sheath; Change rate of tensile strength and elongation of insulation and sheath before and after aging; Insulation core withstand voltage test; Thermal extension test; Ozone resistance test; Finished cable bending test, etc.
pro_con_09 Technical support: We will provide a professional technical support team to solve technical problems encountered by customers during product selection and use.

After sales

pro_con_11-12Order tracking: We will establish a comprehensive order tracking system and update customer order status in a timely manner to ensure that customers can keep track of the progress of their orders.
pro_con_14 Product training: We will provide customers with product usage training, including product operation methods, maintenance, and other content, to help customers better use the product.
pro_con_16 After sales service hotline: We will establish a 24-hour after-sales service hotline to provide customers with 24/7 technical support and service consultation, timely follow up on customers' after-sales service needs, and ensure that customers' problems are resolved in a timely manner.
pro_con_18 After sales satisfaction survey: We will conduct regular after-sales satisfaction surveys to understand customer satisfaction with our after-sales service and continuously improve service quality based on customer feedback.
