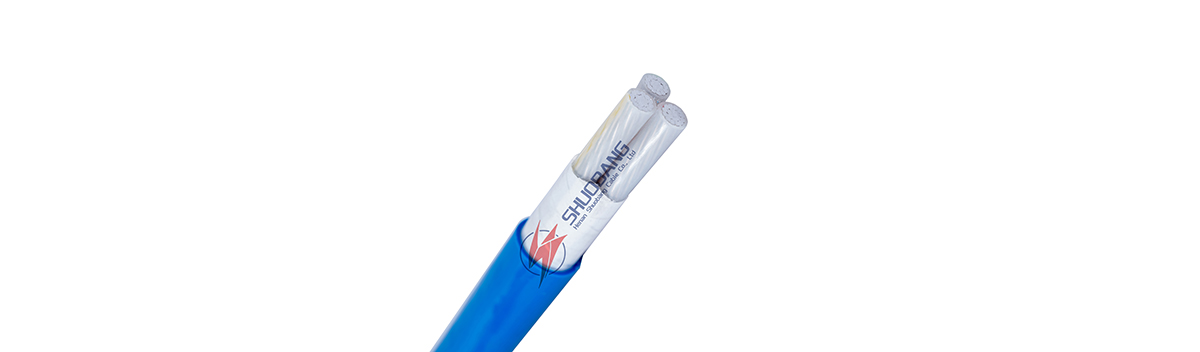

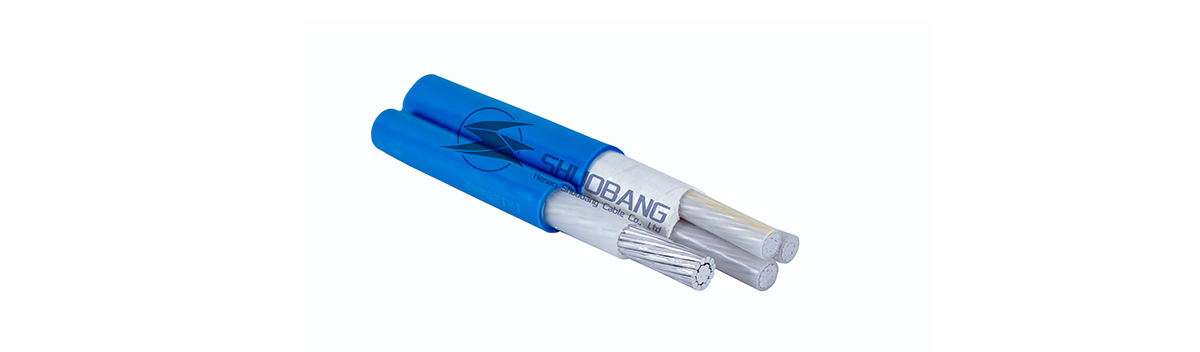

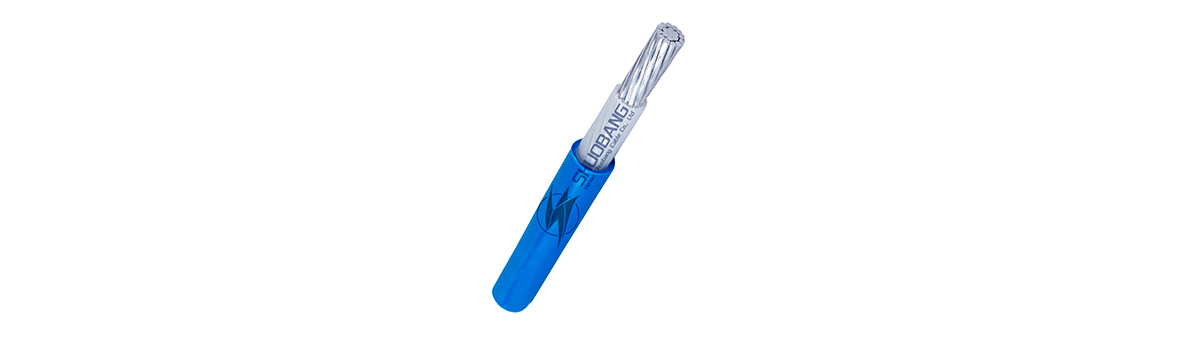

IECBS standard PVC Insulated LV Power Cable

IECBS standard PVC Insulated LV Power Cable
IECBS standard PVC Insulated LV Power Cable
IECBS standard PVC Insulated LV Power Cable
IECBS standard PVC Insulated LV Power Cable
IECBS standard PVC Insulated LV Power Cable
PVC insulated armored & unarmoured power cable is used as power distribution and transmission line at rated voltage 0.6/1KV. Like power networks, underground, outdoor and indoor applications and within cable ducting.

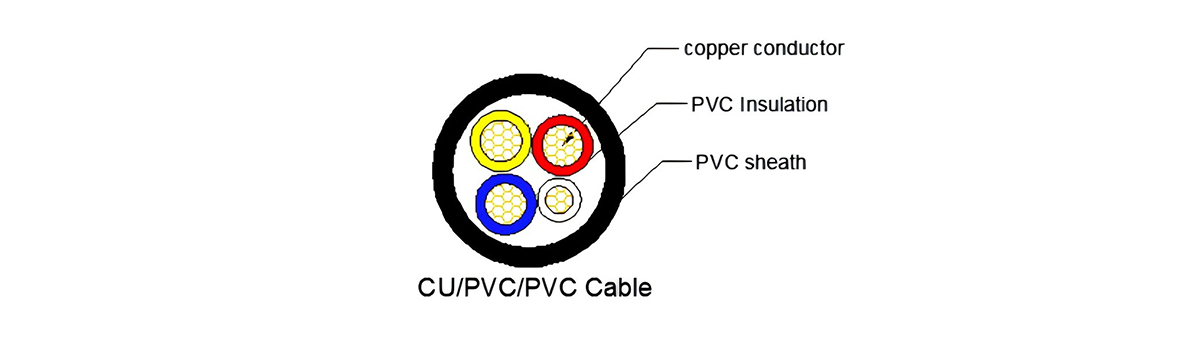

Conductor: Class 2 stranded copper conductor or aluminium conductor
Number of cable cores: one core(sing core),two cores(double cores),three cores, four cores (four equal-section-area cores of three equal-section-area and one smaller section area neutral core),five cores (five equal-section-area cores or three equal-section-area cores and two small area neutral cores).
Insulation: Polyvinyl chloride (PVC)

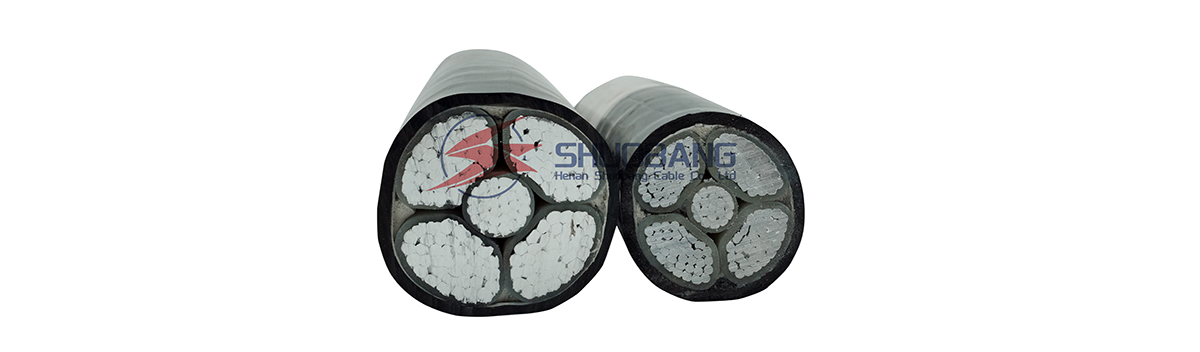

Armour method: Unarmored or Steel Wire Armour (SWA), Steel Tape Armour (STA), Aluminium Wire Armour (AWA), Aluminium Tape Armour (ATA) Sheath: Polyvinyl chloride PVC
Nominal area of conductor Maximum
conductor
resistance at 20℃		 Thickness of insulation Thickness of bedding Dia. Of armour wire Thickness of outer sheath Approx overall diameter Approx cable weight
Extruded
bedding		 Lapped
bedding		 Extruded
bedding		 Lapped
bedding		 Extruded
bedding		 Lapped
bedding
mm2 Ω/km mm mm mm mm mm kg/km
1.5* 12.1 0.7 0.8 - 0.9 1.4 13.3 - 340 -
1.5 12.1 0.7 0.8 - 0.9 1.4 13.7 - 355 -
2.5* 7.41 0.8 0.8 - 0.9 1.4 14.6 - 415 -
2.5 7.41 0.8 0.8 0.9 1.4 15 - 435 -
4 4.61 0.8 0.8 - 0.9 1.4 16.1 - 515 -
6 3.08 0.8 0.8 - 1.25 1.5 18.3 - 720 -
10 1.83 1 0.8 - 1.25 1.6 20.9 - 960 -
16 1.15 1 0.8 - 1.25 1.6 23.2 - 1240 -
25 0.727 1.2 1 0.8 1.6 1.7 25.6 24.5 1670 1550
35 0.524 1.2 1 0.8 1.6 1.8 28.1 27 2050 1920
50 0.387 1.4 1 0.8 1.6 1.9 31.9 30.8 2610 2460
70 0.268 1.4 1.2 0.8 2 2 35.5 34 3570 3360
95 0.193 1.6 1.2 0.8 2 2.1 40.3 38.8 4590 4360
120 0.153 1.6 1.2 0.8 2 2.2 43.5 42 5480 5230
150 0.124 1.8 1.4 0.8 2.5 2.4 47.8 45.9 6940 6600
185 0.0991 2 1.4 0.8 2.5 2.5 52.3 50.4 8270 7900
240 0.0754 2.2 1.6 0.8 2.5 2.6 59 56.7 10330 9870
300 0.0601 2.4 1.6 0.8 2.5 2.8 63.7 61.4 12480 11950
400 0.047 2.6 1.6 0.8 2.5 3 71.1 68.8 15560 14970
500 0.0366 2.8 1.8 0.8 3.15 3.6 78.8 76.1 19910 19130
Nominal area of
conductor		 Maximum conductor resistance at 20℃ Thickness of
insulation		 Thickness of
bedding		 Dia. Of
armour
wire		 Thicknes s of outer sheath Approx.overall
diameter		 Approx.cable
weight
Phase Neutral Phase Neutral Phase Neutral Extruded Lapped Extruded bedding Lapped bedding Extruded bedding Lapped bedding
m㎡ Ω/km mm mm mm mm mm kg/km
10* 6 1.83 3.08 1 1 1 - 1.25 1.8 22.7 - 1080 -
16* 10 1.15 1.83 1 1 1 - 1.6 1.8 25.9 - 1530 -
25 16 0.727 1.15 1.2 1 1 0.8 1.6 1.8 27.9 26.8 1930 1835
35 16 0.524 1.15 1.2 1 1 0.8 1.6 1.9 31.5 30.4 2380 2270
50 25 0.387 0.727 1.4 1.2 1 0.8 2 2 35.9 34.8 3250 3120
70 35 0.268 0.524 1.4 1.2 1.2 0.8 2 2.1 39.4 37.9 4150 3945
95 50 0.193 0.387 1.6 1.4 1.2 0.8 2 2.3 44.8 43.3 5360 5125
120 70 0.153 0.268 1.6 1.4 1.4 0.8 2.5 2.5 49.3 47.4 6890 6575
150 70 0.124 0.268 1.8 1.4 1.4 0.8 2.5 2.6 54 51.2 8110 7665
185 95 0.0991 0.193 2 1.6 1.4 0.8 2.5 2.7 58.7 56.5 9730 9305
240 120 0.0754 0.153 2.2 1.6 1.6 0.8 2.5 2.9 64.9 62.1 12030 11535
300 150 0.0601 0.124 2.4 1.8 1.6 0.8 2.5 3.1 70.2 67.9 14660 13990
300 185 0.0601 0.0991 2.4 2 1.6 0.8 2.5 3.2 70.4 68.1 14870 14350
400 185 0.047 0.0991 2.6 2 1.8 0.8 3.15 3.4 80.2 76.6 19090 18125
500 240 0.0366 0.0754 2.8 2.2 1.8 0.8 3.15 3.7 88.4 85.7 23300 22360
Nominal
area of
conducto r		 Maximum conducto r
resistan ce at20°c		 Thi cknes s of
insulati on		 Thi ckness of
bedding		 Dia. Of
armour
wire		 Thi cknes s of
outer
sheath		 Approx.overa11
diameter		 Approx.cable
weight
Extruded bedding Lapped
bedding		 Extruded bedding Lapped
bedding		 Extruded bedding Lapped
bedding
m㎡ Ω/km mm mm mm mm mm kg/km
1.5* 12.1 0.7 0.8 - 0.9 1.4 14.1 - 385 -
1.5 12.1 0.7 0.8 - 0.9 1.4 14.5 - 400 -
2.5* 7.41 0.8 0.8 - 0.9 1.4 15.5 - 470 -
2.5 7.41 0.8 0.8 0.9 1.4 16 - 495 -
4 4.61 0.8 0.8 - 1.25 1.5 18.1 - 700 -
6 3.08 0.8 0.8 - 1.25 1.5 19.6 - 8300 -
10 1.83 1 0.8 - 1.25 1.6 22.4 - 1130 -
16 1.15 1 1 - 1.6 1.7 26.4 - 1650 -
25 0.727 1.2 1 0.8 1.6 1.8 27.9 26.8 2040 1890
35 0.524 1.2 1 0.8 1.6 1.9 31.5 30.4 2550 2400
50 0.387 1.4 1.2 0.8 2 2 36.3 34.8 3510 3300
70 0.268 1.4 1.2 0.8 2 2.1 39.4 37.9 4450 4220
95 0.193 1.6 1.2 0.8 2 2.2 44.6 43.1 5770 5510
120 0.153 1.6 1.4 0.8 2.5 2.4 49.1 47.2 7350 6970
150 0.124 1.8 1.4 0.8 2.5 2.5 53.5 51.6 8760 8390
185 0.0991 2 1.4 0.8 2.5 2.6 58.6 56.3 10530 10040
240 0.0754 2.2 1.6 0.8 2.5 2.8 64.2 61.9 13050 12520
300 0.0601 2.4 1.6 0.8 2.5 3 70 67.7 15880 15300
400 0.047 2.6 1.8 0.8 3.15 3.3 79.1 76.4 20710 20000
500 0.0366 2.8 1.8 0.8 3.15 3.9 88.8 86.1 25400 24720
Nominal area of conduct or Maximu m
conduct or
resistan ce at		 Thickne SS of
insulation		 Thickness of
bedding		 Dia.Of armour wire Thickne sS of
outer
sheath		 Approx.overall
diameter		 Approx cable
weight
dbedding Lapped |bedding d
bedding 		 Lapped bedding d
bedding
m㎡ Ω/km mm mm mm mm mm kg/km
1.5 12.1 0.7 0.8 - 1.25 1.8 18 - 601
2.5 7.41 0.8 0.8 1.25 1.8 19.2 - 707
4 4.61 0.8 0.8 - 1.25 1.8 21.8 - 915
6 3.08 0.8 0.8 - 1.6 1.8 24 - 1197
10 1.83 1 0.8 - 1.6 1.8 26.5 - 1517
16 1.15 1 1 - 1.6 1.9 29.5 - 1948
25 0.727 1.2 1 0.8 1.6 2 33.4 29.4 2605
35 0.524 1.2 1 0.8 2 2.1 34.8 30.62 3283
50 0.387 1.4 1.2 0.8 2 2.2 39 34.62 4183
70 0.268 1.4 1.2 0.8 2 2.3 43.1 38.52 5394
95 0.193 1.6 1.2 0.8 2.5 2.6 50.1 44.92 7487
120 0.153 1.6 1.4 0.8 2.5 2.7 54.1 48.72 8935
150 0.124 1.8 1.4 0.8 2.5 2.9 59.1 53.32 10711
185 0.0991 2 1.4 0.8 2.5 3.1 64.9 58.72 12988
240 0.0754 2.2 1.6 0.8 2.5 3.3 72.2 65.62 16369
300 0.0601 2.4 1.6 0.8 3.15 3.6 80.7 73.52 20850
400 0.047 2.6 1.8 0.8 3.15 3.8 88.92 81.32 25630
500 0.0366 2.8 1.8 0.8 2.5 2.5 46.8 41.8 19916

Pre sales

Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
pro_con_03 Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
pro_con_06 Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Sampling inspection items: DC resistance of cable conductors; Finished cable withstand voltage test; Single wire diameter and deviation of conductor; Average insulation thickness and thinnest point; Average thickness and thinnest part of the sheath; Change rate of tensile strength and elongation of insulation and sheath before and after aging; Insulation core withstand voltage test; Thermal extension test; Ozone resistance test; Finished cable bending test, etc.
