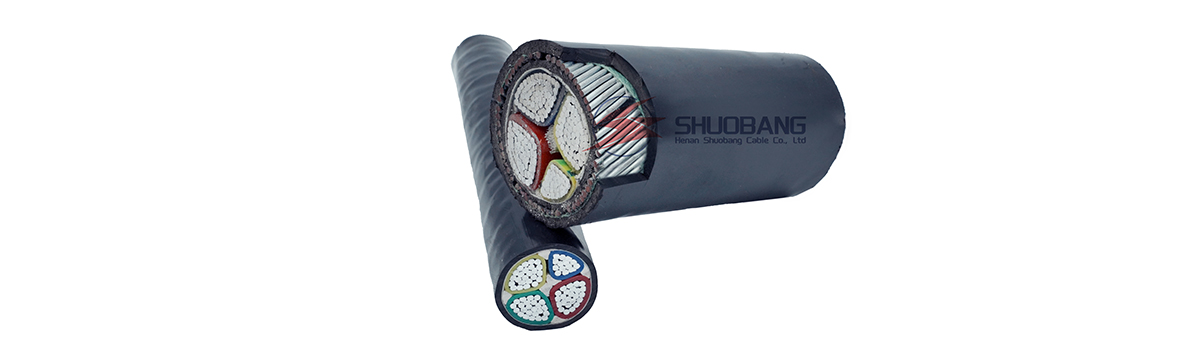

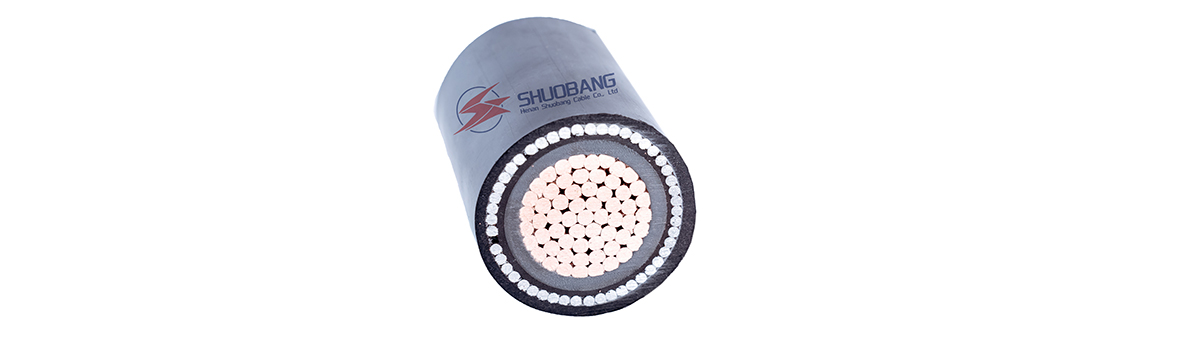

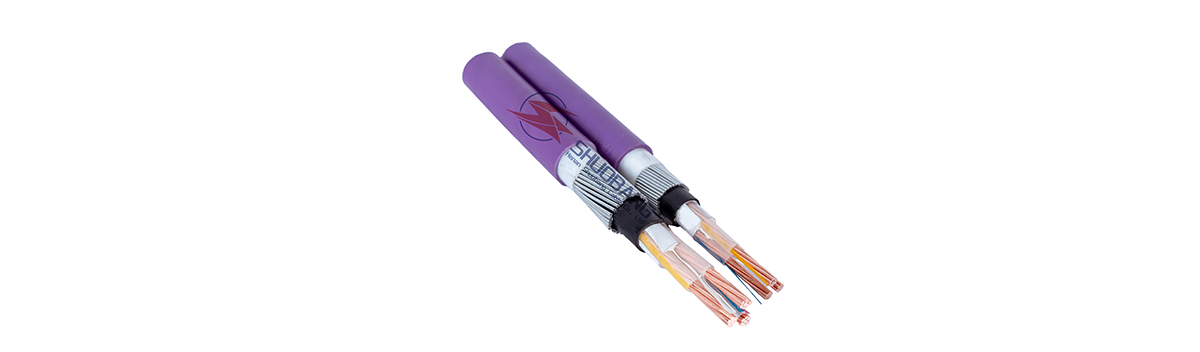

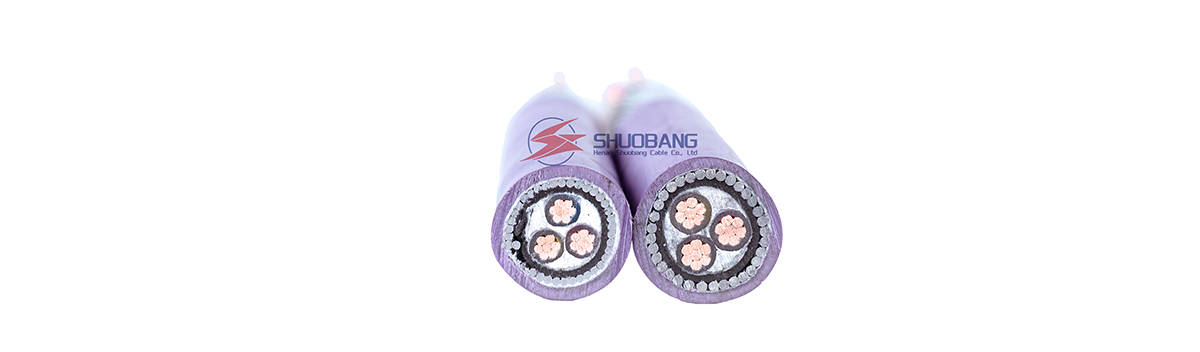

IEC/BS Standard XLPE Insulated LV Power Cable is laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable.XLPE cable has high electric strength, mechanical strength, high-ageing resistance, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technologies（peroxide，silence，and irradiation cross linking）.The flame-retardant cable covers all kinds of low- smoke，low-halogen，low-smoke halogen free and non-smoke no halogenated and three classes of A,B,C.
| Nominal area of conductor | Maximum conductor resistance at 20c | Thickness of insulation | Thickness of extruded bedding | Dia. Of armour wire | Thickness of outer sheath | Approx.overall diameter | Approx.cable weight |
| mm | /km | mm | mm | mm | mm | mm | kg/km |
| 1.5* | 12.1 | 0.7 | 1 | 0.9 | 1.8 | 14.2 | 355 |
| 1.5 | 12.1 | 0.7 | 1 | 0.9 | 1.8 | 14.6 | 370 |
| 2.5* | 7.41 | 0.7 | 1 | 0.9 | 1.8 | 15 | 400 |
| 2.5 | 7.41 | 0.7 | 1 | 0.9 | 1.8 | 15.4 | 415 |
| 4 | 4.61 | 0.7 | 1 | 0.9 | 1.8 | 16.4 | 480 |
| 6 | 3.08 | 0.7 | 1 | 0.9 | 1.8 | 17.6 | 570 |
| 10 | 1.83 | 0.7 | 1 | 1.25 | 1.8 | 20.3 | 820 |
| 16 | 1.15 | 0.7 | 1 | 1.25 | 1.8 | 22.3 | 1030 |
| 25 | 0.727 | 0.9 | 1 | 1.6 | 1.8 | 26.3 | 1530 |
| 35 | 0.524 | 0.9 | 1 | 1.6 | 1.8 | 28.5 | 1840 |
| 50 | 0.387 | 1 | 1 | 1.6 | 1.8 | 30.9 | 2070 |
| 70 | 0.268 | 1.1 | 1 | 1.6 | 2 | 34.9 | 2670 |
| 95 | 0.193 | 1.1 | 1.2 | 2 | 2.1 | 40.1 | 3660 |
| 120 | 0.153 | 1.2 | 1.2 | 2 | 2.2 | 43.7 | 4350 |
| 150 | 0.124 | 1.4 | 1.2 | 2 | 2.3 | 47.5 | 5160 |
| 185 | 0.0991 | 1.6 | 1.4 | 2.5 | 2.5 | 53.3 | 6600 |
| 240 | 0.0754 | 1.7 | 1.4 | 2.5 | 2.7 | 59.1 | 8100 |
| 300 | 0.0601 | 1.8 | 1.6 | 2.5 | 2.8 | 64.1 | 9660 |
| 400 | 0.047 | 2 | 1.6 | 2.5 | 3.1 | 71.3 | 12000 |
| 500 | 0.0366 | 2.2 | 1.6 | 3.15 | 3.3 | 79.8 | 15500 |
| Maximum conducto resistanc e at 20℃ |
Thicknes s of insulation |
Thickness of bedding |
Dia.Of armour wire |
Thicknes s of outer sheath | Approx.overall diameter |
Approx.cable weight |
|||
| Extruded bedding | Lapped bedding |
Extruded bedding | Lapped bedding |
Extruded bedding | Lapped bedding |
||||
| Ω/km | mm | mm | mm | mm | mm | kg/km | |||
| 12.1 | 0.7 | 0.8 | - | 0.9 | 1.3 | 13.3 | - | 330 | - |
| 12.1 | 0.7 | 0.8 | - | 0.9 | 1.3 | 13.7 | - | 350 | - |
| 7.41 | 0.7 | 0.8 | - | 0.9 | 1.4 | 14.4 | - | 390 | - |
| 7.41 | 0.7 | 0.8 | 0.9 | 1.4 | 14.8 | - | 415 | - | |
| 4.61 | 0.7 | 0.8 | - | 0.9 | 1.4 | 15.9 | - | 490 | - |
| 3.08 | 0.7 | 0.8 | - | 0.9 | 1.4 | 17.2 | - | 580 | - |
| 1.83 | 0.7 | 0.8 | - | 1.25 | 1.5 | 19.6 | - | 850 | - |
| 1.15 | 0.7 | 0.8 | - | 1.25 | 1.6 | 22.2 | - | 1110 | - |
| 0.727 | 0.9 | 1 | 0.8 | 1.6 | 1.7 | 24.3 | 23.2 | 1520 | 1420 |
| 0.524 | 0.9 | 1 | 0.8 | 1.6 | 1.8 | 26.9 | 25.8 | 1910 | 1790 |
| 0.387 | 1 | 1 | 0.8 | 1.6 | 1.8 | 30.1 | 29 | 2400 | 2250 |
| 0.268 | 1.1 | 1 | 0.8 | 1.6 | 1.9 | 32.8 | 31.7 | 3100 | 2950 |
| 0.193 | 1.1 | 1.2 | 0.8 | 2 | 2.1 | 38.2 | 36.7 | 4310 | 4060 |
| 0.153 | 1.2 | 1.2 | 0.8 | 2 | 2.2 | 41.8 | 40.3 | 5170 | 4920 |
| 0.124 | 1.4 | 1.4 | 0.8 | 2.5 | 2.3 | 46.4 | 44.5 | 6620 | 6290 |
| 0.0991 | 1.6 | 1.4 | 0.8 | 2.5 | 2.4 | 50.8 | 48.9 | 7860 | 7510 |
| 0.0754 | 1.7 | 1.4 | 0.8 | 2.5 | 2.6 | 56.9 | 55 | 9810 | 9410 |
| 0.0601 | 1.8 | 1.6 | 0.8 | 2.5 | 2.7 | 61.8 | 59.5 | 11910 | 11430 |
| 0.047 | 2 | 1.6 | 0.8 | 2.5 | 2.9 | 69.2 | 66.9 | 14910 | 14330 |
| Nominal area of conductor | Maximum conductor resistance at 20℃ |
Thickness of insulation |
Thickness of bedding | Dia.Of armour wire | Thickness of outer sheath |
Approx overall diameter | Approx .cable weight | |||
| Extruded bedding |
Lapped bedding |
Extruded bedding |
Lapped bedding |
Extruded bedding |
Lapped bedding |
|||||
| m㎡ | Ω/km | mm | mm | mm | mm | mm | kg/km | |||
| 1.5* | 12.1 | 0.7 | 0.8 | - | 0.9 | 1.3 | 13.3 | - | 330 | |
| 1.5 | 12.1 | 0.7 | 0.8 | - | 0.9 | 1.3 | 13.7 | - | 350 | |
| 2.5* | 7.41 | 0.7 | 0.8 | 0.9 | 1.4 | 14.4 | - | 390 | - | |
| 2.5 | 7.41 | 0.7 | 0.8 | 0.9 | 1.4 | 14.8 | - | 415 | - | |
| 4 | 4.61 | 0.7 | 0.8 | - | 0.9 | 1.4 | 15.9 | - | 490 | - |
| 6 | 3.08 | 0.7 | 0.8 | 0.9 | 1.4 | 17.2 | - | 580 | - | |
| 10 | 1.83 | 0.7 | 0.8 | - | 1.25 | 1.5 | 19.6 | - | 850 | - |
| 16 | 1.15 | 0.7 | 0.8 | 1.25 | 1.6 | 22.2 | - | 1110 | - | |
| 25 | 0.727 | 0.9 | 1 | 0.8 | 1.6 | 1.7 | 24.3 | 23.2 | 1520 | 142 |
| 35 | 0.524 | 0.9 | 1 | 0.8 | 1.6 | 1.8 | 26.9 | 25.8 | 1910 | 179 |
| 50 | 0.387 | 1 | 1 | 0.8 | 1.6 | 1.8 | 30.1 | 29 | 2400 | 225 |
| 70 | 0.268 | 1.1 | 1 | 0.8 | 1.6 | 1.9 | 32.8 | 31.7 | 3100 | 295 |
| 95 | 0.193 | 1.1 | 1.2 | 0.8 | 2 | 2.1 | 38.2 | 36.7 | 4310 | 406 |
| 120 | 0.153 | 1.2 | 1.2 | 0.8 | 2 | 2.2 | 41.8 | 40.3 | 5170 | 492 |
| 150 | 0.124 | 1.4 | 1.4 | 0.8 | 2.5 | 2.3 | 46.4 | 44.5 | 6620 | 629 |
| 185 | 0.0991 | 1.6 | 1.4 | 0.8 | 2.5 | 2.4 | 50.8 | 48.9 | 7860 | 751 |
| 240 | 0.0754 | 1.7 | 1.4 | 0.8 | 2.5 | 2.6 | 56.9 | 55 | 9810 | 941 |
| 300 | 0.0601 | 1.8 | 1.6 | 0.8 | 2.5 | 2.7 | 61.8 | 59.5 | 11910 | 1143 |
| 400 | 0.047 | 2 | 1.6 | 0.8 | 2.5 | 2.9 | 69.2 | 66.9 | 14910 | 1433 |
