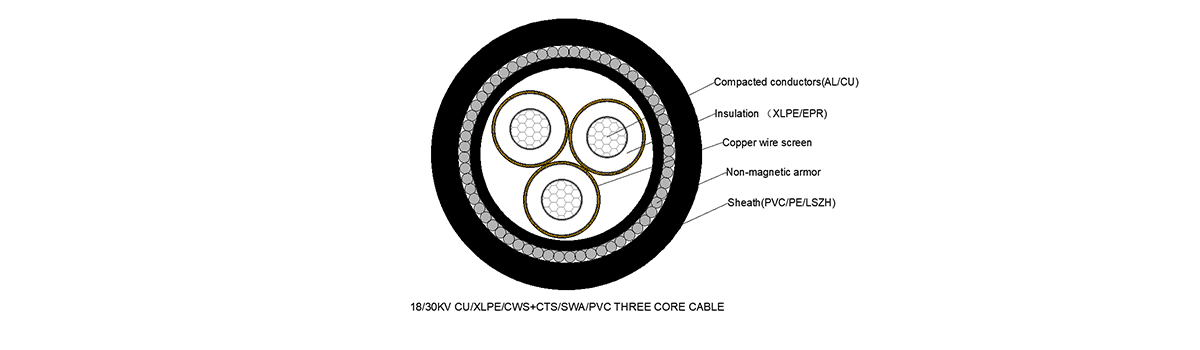

N2XSEY NA2XSEY N2XSE2Y NA2XSE2Y Three Cores Cable are suitable for use in distribution installations, electric power stations and industrial systems. The cables are for fixed assembly in lines with unlimited difference levels, indoor installations, in cable ducts, conduits and shafts, over shelves and grills directly underground in ditch and outdoor shelter.
Uo/U – 6/10 kV, 12/20 kV, 18/30kV IEC 60502-2 / DIN VDE 0276-620The three-core cables with insulation of cross-linked polyethylene (XLPE) are designed for transfer and distribution of electrical power with nominal voltage Uo/U 6/10; 12/20; 18/30 kV and frequency 50 Hz in urban and district electrical networks and for electrical supply of transformer’s substations, small and medium industrial plants.
| 6-10KV Medium Voltage Three Cor | ||||||||||
| Nom nsulation hickness |
Copper tape thickness |
Copper wire screen area |
Appro.Insulation dia | Nom armor thickness |
Nom sheath thickness |
Appro overall diameter |
Appro weight (kg/km) |
|||
| （mm） | (mm) | (mm) | (mm) | （mm） | (mm) | (mm) | (mm) | (mm) | CU | AL |
| 25 | 6.05 | 3.4 | 0.1 | 16 | 12.5 | 0.5 | 2.3 | 44 | 3200 | 2700 |
| 35 | 7.1 | 3.4 | 0.1 | 16 | 13.5 | 0.5 | 2.4 | 46 | 3700 | 2000 |
| 50 | 8.25 | 3.4 | 0.1 | 16 | 14.7 | 0.5 | 2.5 | 49 | 4300 | 3400 |
| 70 | 9.9 | 3.4 | 0.1 | 16 | 16.3 | 0.5 | 2.6 | 53 | 5200 | 3900 |
| 95 | 11.7 | 3.4 | 0.1 | 16 | 18.1 | 0.5 | 2.8 | 57 | 6400 | 4600 |
| 120 | 13.1 | 3.4 | 0.1 | 16 | 19.5 | 0.5 | 2.9 | 61 | 7400 | 5200 |
| 150 | 14.3 | 3.4 | 0.1 | 25 | 20.7 | 0.5 | 3 | 64 | 8500 | 5700 |
| 185 | 16.3 | 3.4 | 0.1 | 25 | 22.7 | 0.5 | 3.1 | 68 | 10000 | 6500 |
| 240 | 18.7 | 3.4 | 0.1 | 25 | 25.3 | 0.5 | 3.3 | 74 | 12300 | 7600 |
| 300 | 20.9 | 3.4 | 0.1 | 25 | 27.9 | 0.5 | 3.4 | 79 | 14600 | 8800 |
| 400 | 23.7 | 3.4 | 0.1 | 35 | 31.1 | 0.8 | 3.7 | 87 | 18700 | 11300 |
| Construction data 2XSE2Y/N2XSE2Y,A2XSE2Y/NA2XSE2Y 6/10; 12/20; 18/30 kV | ||||||||
| Number of conductors and nominal cross section |
Thickness of insulation | Thickness of sheath |
Nominal cross section of screen |
Cable diameter approx. | 2XSE2Y, N2XSE2Y |
A2XSE2Y, NA2XSE2Y |
||
| Mass of Cu approx. |
Mass of cable approx. |
Mass of Al approx. |
Mass of cable approx. |
|||||
| Nxmm2 | mm | mm | mm2 | mm | kg/km | kg/km | kg/km | kg/km |
| 6/10 kV | ||||||||
| 3×35mm／16 3×50mm／16 |
3,4 3,4 |
2,5 2,5 |
16 16 |
46,4 48,8 |
1010 1363 | 2849 3348 |
298 404 |
2174 2437 |
| 3×70m／16 | 3,4 | 2,7 | 16 | 53,0 | 1968 | 4208 | 584 | 2894 |
| 3×95mm／16 | 3,4 | 2,8 | 16 | 57,1 | 2732 | 5229 | 809 | 3402 |
| 3×120mm／16 | 3,4 | 2,9 | 16 | 60,3 | 3440 | 6108 | 1023 | 3812 |
| 3x150rm/25 | 3,4 | 3,0 | 25 | 64,2 | 4245 | 7287 | 1257 | 4449 |
| 3×185mm／253×240rm／25 | 3,4 3,4 |
3,2 3,4 |
25 25 |
68,5 74,3 |
5311 6981 | 8632 10690 |
1579 2071 |
5086 6027 |
| 3×300mm／25 | 3,4 | 3,5 | 25 | 79,6 | 8661 | 12766 | 2589 | 6999 |
| 12/20 kV | ||||||||
| 3×35mm／16 | 5,5 | 2,8 | 16 | 56,7 | 1010 | 3714 | 298 | 3038 |
| 3×50mm／16 3×70mm／16 |
5,5 5,5 |
2,9 3,0 |
16 16 |
59,3 63,3 |
13631968 | 4259 5153 |
404 584 |
3349 3839 |
| 3×95rm／16 3×120mm／16 |
5,5 5,5 |
3,1 3,2 |
16 16 |
67,4 70,6 |
2732 3440 | 6226 7162 |
809 1023 |
4399 4866 |
| 3x150rm/25 | 5,5 | 3,4 | 25 | 74,7 | 4245 | 8439 | 1257 | 5601 |
| 3×185rm／25 | 5,5 | 3,5 | 25 | 78,8 | 5311 | 9830 | 1579 | 6284 |
| 3×240mm／25 | 5,5 | 3,7 | 25 | 84,5 | 6981 | 11998 | 2071 | 7334 |
| 18/30 kV | ||||||||
| 3×50mm／16 | 8,0 | 3,3 | 16 | 71,7 | 1363 | 5505 | 404 | 4596 |
| 3×70m／16 | 8,0 | 3,4 | 16 | 75,8 | 1968 | 6480 | 584 | 5167 |
| 3×95mm／16 | 8,0 | 3,5 | 16 | 79,8 | 2732 | 7651 | 809 | 5824 |
| 3×120m／16 | 8,0 | 3,7 | 16 | 83,3 | 3440 | 8665 | 1023 | 6369 |
| 3x150rm/25 | 8,0 | 3,8 | 25 | 87,1 | 4245 | 10019 | 1257 | 7181 |
