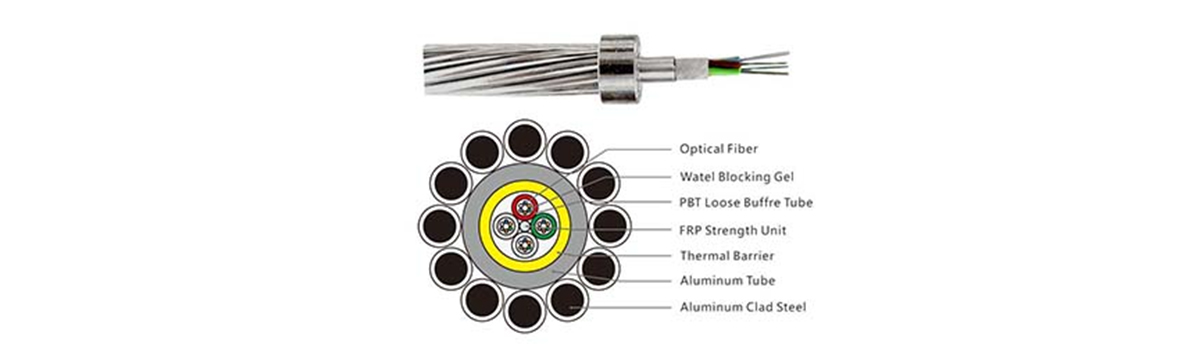

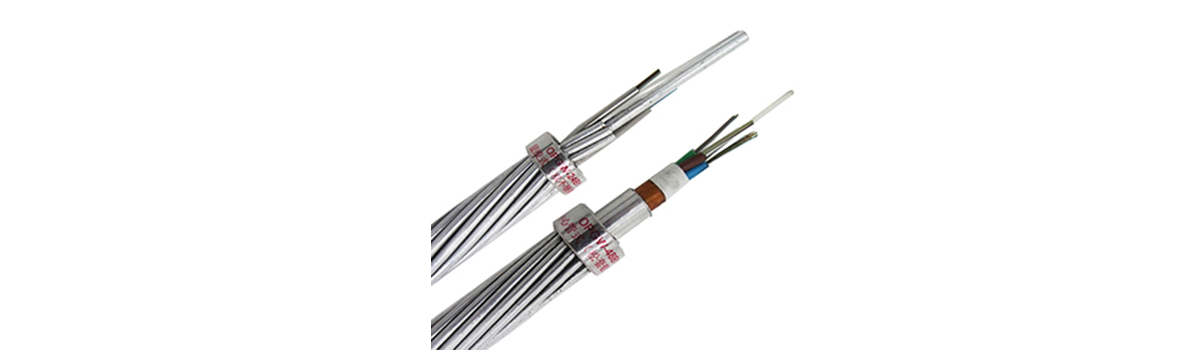

OPGW optical cable is to place the optical fiber in the ground wire of the overhead high-voltage transmission line to form the optical fiber communication network on the transmission line. This structure has the dual functions of ground wire and communication. The optical power ground wire is more reliable, stable and firm due to the metal wire wrapping. Because the overhead ground wire and the optical cable are combined as a whole, compared with other methods of optical cables, the construction period is shortened and the construction cost is saved.
Using good stainless steel tube production technology, the tube is filled with water blocking compounds, which can effectively protect the optical fiber Good compactness and high tensile strength The short-circuit current has little mutual interference between the power grid and the communication network Similar to the common ground wire specifications, it is very convenient to erect and can directly replace the original ground wire.

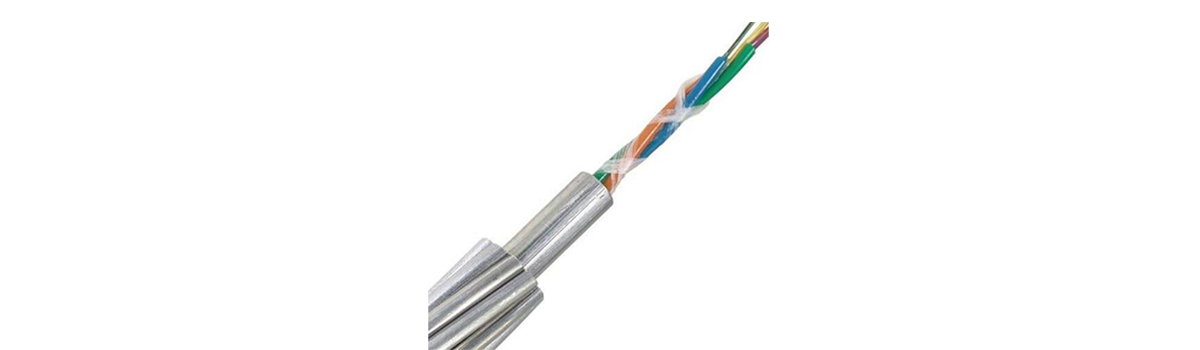

he PBT Loose Tube Optical Ground Wire (OPGW) is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Good anti-corrosion performance.Material and structure are uniform, good resistance to vibration fatigue.
Product Name: PBT Loose Buffer Tube Type OPGW
Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Fiber Count: 2-72 Core
Applications: Reconstruction of old power lines and low voltage level lines. Coastal chemical industrial areas with heavy chemical pollution.

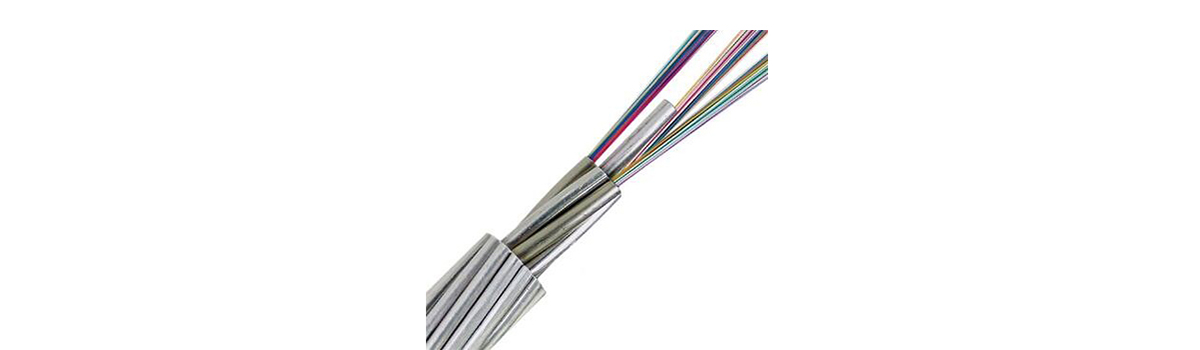

OPGW Mainly used for power communication with accessories,relay protection,automatic transmission,installation together with high-voltage lines. The Stranded Optical Ground Wire (OPGW) is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires, Its design is fully adapted to the most common electric line needs.
Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Fiber Count: Up to 96 Cores
Applicable Voltage Range: Power lines with voltage level of 110KV and below.
Applications: Commonly used in newly built overhead power lines. Can meet the requirements of big number of fibers and ultra high voltage(UHV)transmission lines. Can provide protection against lightning by transmitting large fault short-circuit current

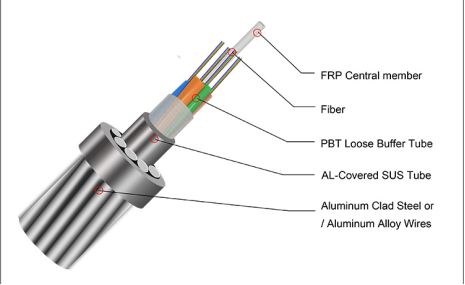

OPGW Mainly used for power communication with accessories,relay protection,automatic transmission,installation together with high-voltage lines. The central AL-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.AL-covered Stainless Steel Tube design increases the cross section of AL,to reach a better fault current and lightning resistance performance.Apply to the transmission line which requires small diameter and large fault current.
Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Applications：Aerial, Overhead, Outdoor
Applicable Voltage Range: Power lines with voltage level of 220KV and above.
Applications:
Reconstruction of old power lines and low voltage level lines.
Coastal chemical industrial areas with heavy chemical pollution.
OPGW Mainly used for power communication with accessories,relay protection,automatic transmission,installation together with high-voltage lines.

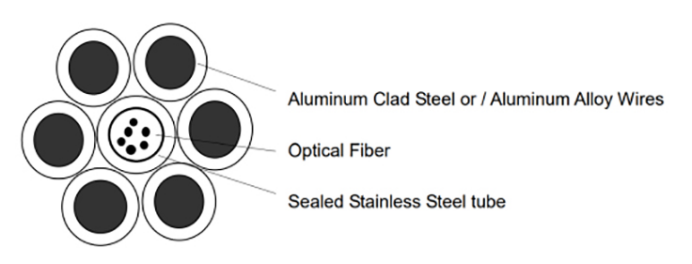

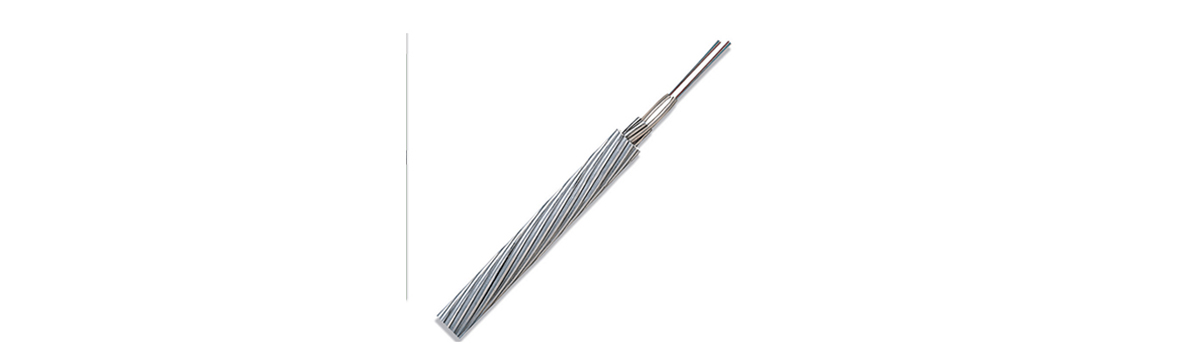

The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.
Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Applications:
Replacement of existing ground wires and reconstruction of old lines.
Applicable to low-grade lines, such as GJ50/70/90 and etc.
| OPGW with PBT Aluminum Tube | |||||
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-113(87.9;176.9) | 48 | 14.8 | 600 | 87.9 | 176.9 |
| OPGW-70（81; 41） | 24 | 12 | 500 | 81 | 41 |
| OPGW-66(79;36) | 36 | 11.8 | 484 | 79 | 36 |
| OPGW-77(72;36) | 36 | 12.7 | 503 | 72 | 67 |

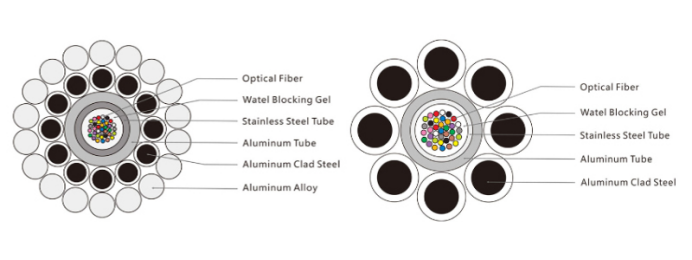

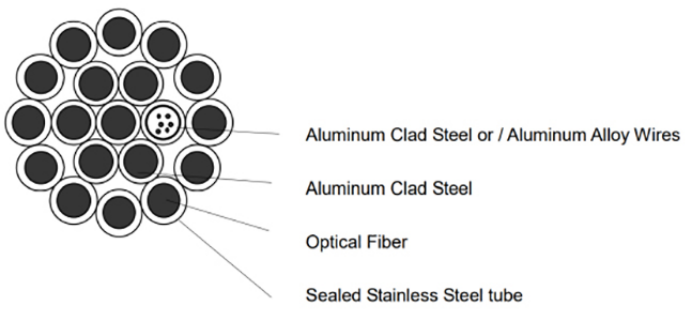

| OPGW Typical Designs of Stranded Stainless Steel Tube | |||||
| Typical design for Double Layer： | |||||
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit (KA2s) |
| OPGW-89[55.4;62.9] | 24 | 12.6 | 381 | 55.4 | 62.9 |
| OPGW-110[90.0;86.9] | 24 | 14 | 600 | 90 | 86.9 |
| OPGW-104[64.6;85.6] | 28 | 13.6 | 441 | 64.6 | 85.6 |
| OPGW-127[79.0;129.5] | 36 | 15 | 537 | 79 | 129.5 |
| OPGW-137[85.0;148.5] | 36 | 15.6 | 575 | 85 | 148.5 |
| OPGW-145[98.6;162.3] | 48 | 16 | 719 | 98.6 | 162.3 |
| Typical design for Three Layer： | |||||
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit (KA2s) |
| OPGW-232[343.0;191.4] | 28 | 20.15 | 1696 | 343 | 191.4 |
| OPGW-254[116.5;554.6] | 36 | 21 | 889 | 116.5 | 554.6 |
| OPGW-347[366.9;687.7] | 48 | 24.7 | 2157 | 366.9 | 687.7 |
| OPGW-282[358.7;372.1] | 96 | 22.5 | 1938 | 358.7 | 372.1 |
| OPGW Typical Designs of Central AL-covered Stainless Steel Tube | |||||
| Typical Design for Single Layer | |||||
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-80(82.3;46.8) | 24 | 11.9 | 504 | 82.3 | 46.8 |
| OPGW-70(54.0;8.4) | 24 | 11 | 432 | 70.1 | 33.9 |
| OPGW-80(84.6;46.7) | 48 | 12.1 | 514 | 84.6 | 46.7 |
| Typical Design for Double Layer | |||||
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-143(87.9;176.9) | 36 | 15.9 | 617 | 87.9 | 176.9 |
| OPGW Typical Designs of Central Stainless Steel Loose Tube | |||||
| Typical design for Single Layer： | |||||
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-32(40.6;4.7) | 12 | 7.8 | 243 | 40.6 | 4.7 |
| OPGW-42(54.0;8.4) | 24 | 9 | 313 | 54 | 8.4 |
| OPGW-42(43.5;10.6) | 24 | 9 | 284 | 43.5 | 10.6 |
| OPGW-54(55.9;17.5) | 36 | 10.2 | 394 | 67.8 | 13.9 |
| OPGW-61(73.7;175) | 48 | 10.8 | 438 | 73.7 | 17.5 |
| OPGW-61(55.1;24.5) | 48 | 10.8 | 358 | 55.1 | 24.5 |
| OPGW-68(80.8;21.7) | 54 | 11.4 | 485 | 80.8 | 21.7 |
| OPGW-75(54.5;41.7) | 60 | 12 | 459 | 63 | 36.3 |
| OPGW-76(54.5;41.7) | 60 | 12 | 385 | 54.5 | 41.7 |
| Typical design for Double Layer： | |||||
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-96(121.7;42.2) | 12 | 13 | 671 | 121.7 | 42.2 |
| OPGW-127(141.0;87.9) | 24 | 15 | 825 | 141 | 87.9 |
| OPGW-127(77.8;128.0) | 24 | 15 | 547 | 77.8 | 128 |
| OPGW-145(121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 |
| OPGW-163(138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 |
| OPGW-163(99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 |
| OPGW-183(109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 |
| OPGW-183(118.4;261.6) | 48 | 18 | 895 | 118.4 | 261.6 |
Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Technical support: We will provide a professional technical support team to solve technical problems encountered by customers during product selection and use.
Order tracking: We will establish a comprehensive order tracking system and update customer order status in a timely manner to ensure that customers can keep track of the progress of their orders.
Product training: We will provide customers with product usage training, including product operation methods, maintenance, and other content, to help customers better use the product.
After sales service hotline: We will establish a 24-hour after-sales service hotline to provide customers with 24/7 technical support and service consultation, timely follow up on customers' after-sales service needs, and ensure that customers' problems are resolved in a timely manner.
After sales satisfaction survey: We will conduct regular after-sales satisfaction surveys to understand customer satisfaction with our after-sales service and continuously improve service quality based on customer feedback.The company has the ability to produce 100000 kilometers of various types of wires and cables annually.
