ACSR AW

ACSR AW
ACSR AW
ACSR AW

Product Description:

ACSS conductor is a composite concentric-lay stranded conductor. Steel strands form the central core of the conductor with two or more layers of aluminum 1350-O wire stranded around it.

The steel core carries most or all of the mechanical load of the conductor due to the “O” temper (fully annealed or soft) aluminum. Steel core wires are protected from corrosion by a zinc-5% Aluminum – mischmetal alloy coating. Corrosion protection should be selected to suit the environment to which the conductor will be exposed.

Product Application:

Mainly used as phase conductor for overhead power transmission and distribution.

Product Standards

ASTM B-549，ASTM B 524，BS-215，IEC 61089

Product Advantages:

ACSS is used for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength;it sags less than a comparable ACSR under electrical loadings;

it is self-damping if prestretched during installation，and its final sags are not affected by long term creep of aluminum.

The advantages make ACSS especially useful in reconductoring applications requiring increased current with existing tensions and clearances, new line applications where structures can be economized because of reduced conductor sag, new line applications requiring high emergency loadings, and lines where aeolian vibration is a problem.

Structure:

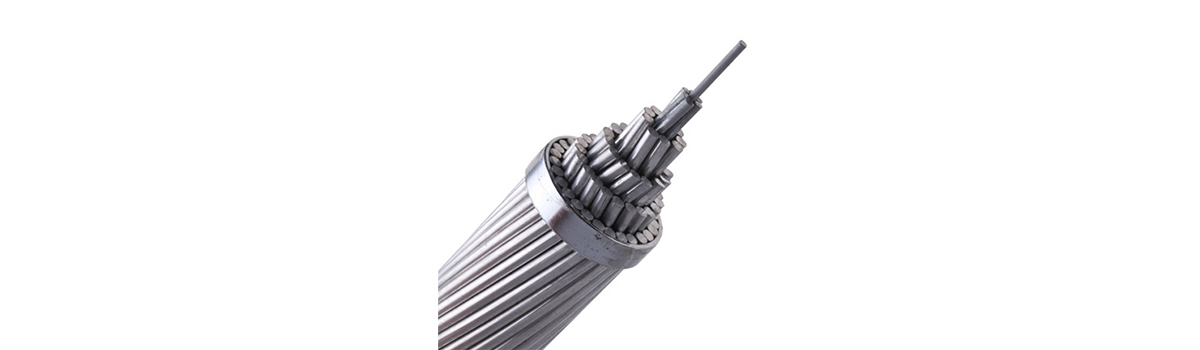

Central aluminum clad steel conductor, outer aluminum alloy stranded conductor

ACSR AW
Code Word Area Stranding and
 Wire Diameter		 Approx. Overall Diameter Nominal Rated Strength Nominal DC
Resistance at 20℃
Nominal Alum. Steel Total Alum. Steel Mass GA2 GA3 AW2
MCM mm² mm² mm² mm mm mm kg/km kN kN kN Ω/km
PARTRIDGE 266.8 135.19 22.02 157.21 26/2.57 7/2.00 16.3 547 39.5 43.28 37.23 0.2065
JUNCO 266.8 135.19 31.54 166.72 30/2.40 7/2.40 16.77 622 52.04 57.82 49.82 0.2049
OSTRICH 300 152.01 24.73 176.69 26/2.73 7/2.12 17.27 614 44.48 48.48 41.81 0.1837
LINNET 336.4 170.45 27.78 198.1 26/2.89 7/2.25 18.3 689 49.82 54.71 46.7 0.1638
ORIOLE 336.4 170.45 39.78 210.26 30/2.69 7/2.69 18.83 784 65.83 72.5 63.16 0.1625
BRANT 397.5 201.41 26.11 227.54 24/3.27 7/2.18 19.61 762 48.93 53.82 46.26 0.1393
IBIS 397.5 201.41 32.83 234.09 26/3.14 7/2.44 19.89 814 57.82 63.16 55.16 0.1386
LARK 397.5 201.41 46.99 248.38 30/2.92 7/2.92 20.46 926 77.84 85.85 74.28 0.1375
FLICKER 477 241.7 31.34 273.11 24/3.58 7/2.39 21.49 915 57.82 63.16 55.6 0.1161
HAWK 477 241.7 39.32 280.85 26/3.44 7/2.67 21.78 976 69.39 76.06 66.28 0.1155
HEN 477 241.7 56.4 298.11 30/3.20 7/3.20 22.42 1112 93.41 100.97 89.4 0.1146
PARAKEET 556.5 281.98 36.54 318.62 24/3.87 7/2.58 23.21 1067 67.61 73.84 64.94 0.0995
DOVE 556.5 281.98 45.93 327.92 26/3.72 7/2.89 23.54 1140 80.95 88.52 77.84 0.099
EAGLE 556.5 281.98 65.8 347.79 30/3.46 7/3.46 24.22 1297 108.98 117.87 101.86 0.0982
PEACOCK 605 306.55 39.7 346.37 24/4.03 7/2.69 24.2 1160 73.39 80.06 70.72 0.0915
SQUAB 605 306.55 49.89 356.28 26/3.87 7/3.01 24.53 1239 87.63 96.52 84.51 0.0911
WOOD DUCK 605 306.55 71.52 378.04 30/3.61 7/3.61 25.25 1410 115.65 125.88 108.53 0.0904
TEAL 605 306.55 69.89 376.4 30/3.61 19/2.16 25.25 1398 118.32 130.33 111.2 0.0904
ROOK 636 322.26 41.76 364.07 24/4.14 7/2.76 24.81 1219 76.95 84.51 74.28 0.0871
GROSBEAK 636 322.26 52.45 374.71 26/3.97 7/3.09 25.16 1303 92.07 99.64 88.52 0.0866
SCOTER 636 322.26 75.19 397.45 30/3.70 7/3.70 25.89 1482 121.88 132.11 111.64 0.086
EGRET 636 322.26 73.54 395.8 30/3.70 19/2.22 25.89 1471 124.54 137.44 116.98 0.086
FLAMINGO 666.6 337.77 43.78 381.72 24/4.23 7/2.82 25.4 1278 80.95 88.52 77.84 0.0831
GANNET 666.6 337.77 54.98 392.67 26/4.07 7/3.16 25.75 1365 96.52 104.08 92.96 0.0827
STILT 715.5 362.54 46.99 409.7 24/4.39 7/2.92 26.32 1372 86.74 94.74 83.62 0.0774
STARLING 715.5 362.54 59.02 421.62 26/4.21 7/3.28 26.69 1466 103.64 112.09 97.86 0.077
REDWING 715.5 362.54 82.73 445.12 30/3.92 19/2.35 27.46 1654 137.44 151.68 131.22 0.0765
CUCKOO 795 402.83 52.19 455.01 24/4.62 7/3.08 27.73 1524 96.52 103.64 92.96 0.0696
DRAKE 795 402.83 65.6 468.61 26/4.44 7/3.45 28.13 1629 115.2 124.54 108.53 0.0693
MACAW 795 402.83 20.7 423.65 42/3.50 7/1.94 26.82 1278 52.49 56.04 50.71 0.0705
TERN 795 402.83 27.84 430.58 45/3.38 7/2.25 27.01 1333 63.16 67.61 60.05 0.0703
CONDOR 795 402.83 52.19 454.79 54/3.08 7/3.08 27.73 1523 96.52 103.64 92.96 0.0696
MALLARD 795 402.83 91.9 494.79 30/4.14 19/2.48 28.95 1838 152.57 168.58 146.34 0.0688
RUDDY 900 456.03 31.54 487.44 45/3.59 7/2.40 28.74 1509 70.28 75.62 68.05 0.0621



ACSR AW
Code Word Area Stranding and
 Wire Diameter		 Approx. Overall Diameter Nominal Rated Strength Nominal DC
Resistance at 20℃
Nominal Alum. Steel Total Alum. Steel Mass GA2 GA3 AW2
MCM mm² mm² mm² mm mm mm kg/km kN kN kN Ω/km
CANARY 900 456.03 59.12 515.16 54/3.28 7/3.28 29.51 1725 109.42 117.43 103.19 0.0615
REDBIRD 954 483.39 62.65 546.17 24/5.06 7/3.38 30.39 1829 115.65 124.54 109.42 0.058
RAIL 954 483.39 33.44 516.83 45/3.70 7/2.47 29.59 1600 74.28 80.06 72.06 0.0586
TOWHEE 954 483.39 42.68 526.23 48/3.58 7/2.79 29.85 1673 87.63 94.74 84.51 0.0584
CARDINAL 954 483.39 62.65 545.93 54/3.38 7/3.38 30.38 1828 115.65 124.54 109.42 0.058
CANVASBACK 954 483.39 110.22 593.49 30/4.53 19/2.72 31.7 2205 182.81 201.94 175.25 0.0572
SNOWBIRD 1033.5 523.67 26.91 550.81 42/3.99 7/2.21 30.57 1662 68.5 72.95 65.83 0.0542
ORTOLAN 1033.5 523.67 36.18 559.54 45/3.85 7/2.57 30.78 1733 80.51 86.74 78.28 0.0541
CURLEW 1033.5 523.67 67.84 591.2 54/3.51 7/3.51 31.62 1980 125.43 134.77 116.09 0.0536
BLUEJAY 1113 563.96 38.96 603.15 45/4.00 7/2.66 31.96 1867 86.74 93.41 84.07 0.0502
FINCH 1113 563.96 71.37 635.61 54/3.65 19/2.19 32.82 2129 135.22 147.67 127.66 0.05
BUNTING 1192.5 604.24 41.76 646.09 45/4.14 7/2.76 33.08 2001 92.96 100.08 90.29 0.0468
GRACKLE 1192.5 604.24 76.6 680.81 54/3.77 19/2.27 33.98 2282 145 157.9 137 0.0467
BITTERN 1272 644.52 44.57 688.9 45/4.27 7/2.85 34.16 2133 99.19 106.75 96.08 0.0439
PHEASANT 1272 644.52 81.66 726.38 54/3.90 19/2.34 35.09 2434 151.68 165.91 145.89 0.0438
DIPPER 1351 684.55 47.32 732.12 45/4.40 7/2.93 35.21 2267 105.42 113.42 102.3 0.0413
MARTIN 1351 684.55 86.71 771.51 54/4.02 19/2.41 36.16 2585 161.02 176.14 155.24 0.0412
BOBOLINK 1431 725.09 50.14 775.04 45/4.53 7/3.02 36.23 2400 111.64 120.1 108.09 0.039
POLVER 1431 725.09 91.9 817.1 54/4.14 19/2.48 37.22 2738 170.8 186.37 164.13 0.0389
NUTHATCH 1510 765.12 52.88 818.16 45/4.65 7/3.10 37.22 2533 117.87 124.99 114.31 0.037
PARROT 1510 765.12 96.85 861.79 54/4.25 19/2.55 38.22 2888 179.7 196.6 173.03 0.0369
RATITE 1590 805.65 41.45 847.37 42/4.94 7/2.75 37.89 2557 104.08 111.2 100.97 0.0352
LAPWING 1590 805.65 55.69 861.6 45/4.78 7/3.18 38.2 2668 124.1 131.66 120.1 0.0351
FALCON 1590 805.65 102.14 907.86 54/4.36 19/2.62 39.23 3043 189.48 207.28 182.81 0.035
CHUKAR 1780 901.93 73.37 975.69 84/3.70 19/2.22 40.67 3086 157.01 169.91 149.45 0.0315
MOCKINGBIRD 2034.5 1030.88 44.57 1075.5 72/4.27 7/2.85 34.17 3218 120.99 128.55 117.87 0.0277
ROADRUNNER 2057 1042.28 56.79 1098.87 76/4.18 19/1.95 34.83 3346 141 150.79 134.77 0.0273
BLUEBIRD 2156 1092.45 88.91 1181.26 84/4.07 19/2.44 44.76 3737 187.26 202.38 181.03 0.026
KIWI 2167 1098.02 47.48 1145.7 72/4.41 7/2.94 35.28 3428 128.99 137 125.43 0.026
THRASHER 2312 1171.49 63.79 1235.08 76/4.43 19/2.07 36.93 3760 158.35 169.47 151.68 0.0243
JOREE 2515 1274.35 69.39 1343.59 76/4.62 19/2.16 38.52 4091 172.14 184.15 165.02 0.0224
