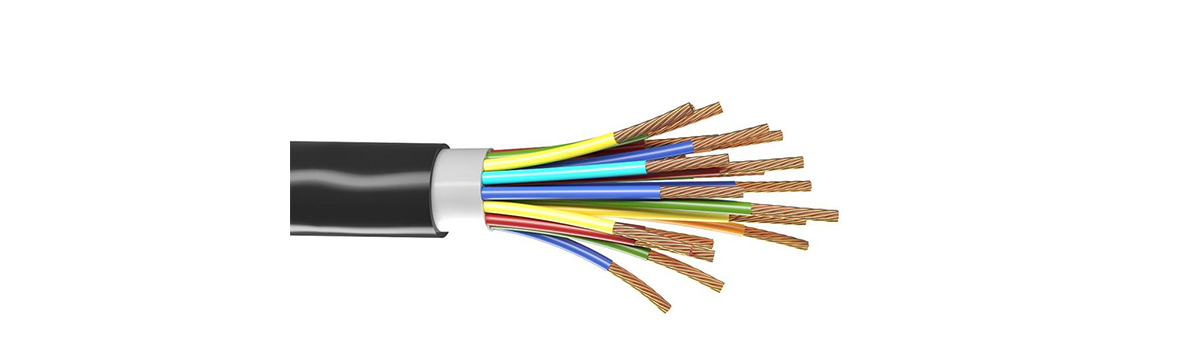

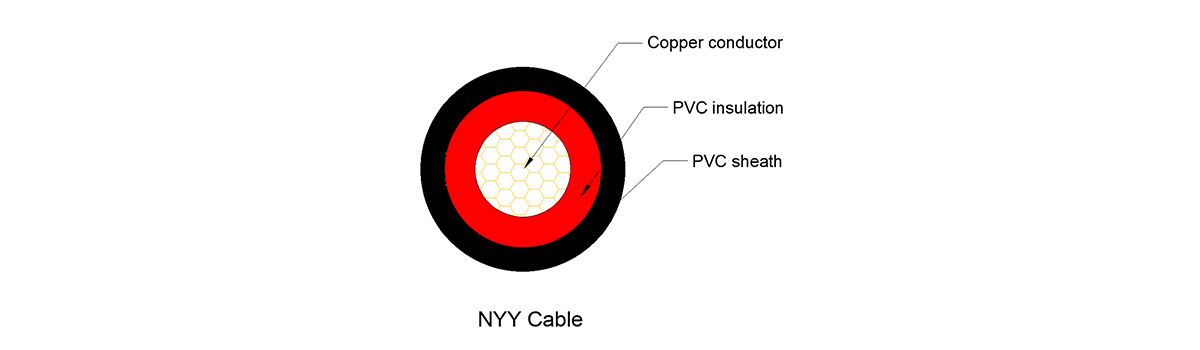

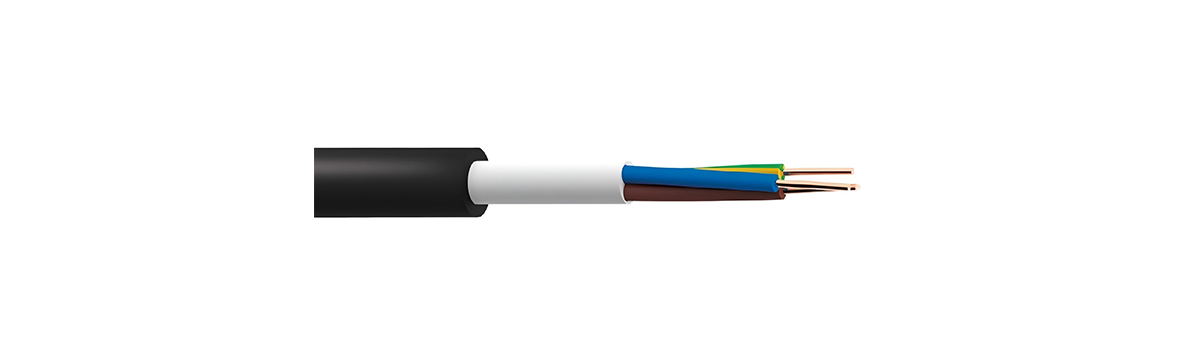

Power and control cables for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.
Voltage Uo/U: 0.6/1kV
Temperature rating: Fixed: -15ºC to +70ºC, Flexing: -5ºC to +50ºC
Standards: IEC 60502-1, Flame retardant according to IEC/EN 60332-1-2
| DIMENSIONS | |||||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm2 | mm | mm | mm | kg/km | |
| 1 | 2.5 | 0.8 | 1.4 | 6.15 | 62 |
| 1 | 4 | 1 | 1.4 | 7.5 | 85 |
| 1 | 6 | 1 | 1.4 | 7.5 | 108 |
| 1 | 10 | 1 | 1.4 | 8.6 | 155 |
| 1 | 16 | 1 | 1.4 | 9.6 | 218 |
| 1 | 25 | 1.2 | 1.4 | 11.1 | 318 |
| 1 | 35 | 1.2 | 1.4 | 12.1 | 414 |
| 1 | 50 | 1.4 | 1.4 | 13.7 | 552 |
| 1 | 70 | 1.4 | 1.4 | 15.5 | 750 |
| 1 | 95 | 1.6 | 1.5 | 17.6 | 1020 |
| 1 | 120 | 1.6 | 1.6 | 19.3 | 1259 |
| 1 | 150 | 1.8 | 1.6 | 21 | 1546 |
| 1 | 185 | 2 | 1.7 | 23.2 | 1913 |
| 1 | 240 | 2.2 | 1.8 | 26.2 | 2471 |
| 1 | 300 | 2.4 | 2 | 29.2 | 3097 |
| 2 | 1.5 | 0.8 | 1.8 | 10 | 147 |
| 2 | 2.5 | 0.8 | 1.8 | 10.7 | 179 |
| 2 | 4 | 1 | 1.8 | 13 | 268 |
| 2 | 6 | 1 | 1.8 | 14.2 | 337 |
| 2 | 10 | 1 | 1.8 | 16.2 | 472 |
| 2 | 16 | 1 | 1.8 | 18.2 | 644 |
| 3 | 1.5 | 0.8 | 1.8 | 10.4 | 166 |
| 3 | 2.5 | 0.8 | 1.8 | 11.3 | 212 |
| 3 | 4 | 1 | 1.8 | 13.1 | 299 |
| 3 | 6 | 1 | 1.8 | 15 | 402 |
| 3 | 10 | 1 | 1.8 | 17.1 | 570 |
| 3 | 16 | 1 | 1.8 | 19.2 | 789 |
| 3 | 25 | 1.2 | 1.8 | 22.1 | 1141 |
| 3 | 35 | 1.2 | 1.8 | 24.1 | 1462 |
| 3 | 50 | 1.4 | 1.8 | 27.6 | 1964 |
| 3 | 70 | 1.6 | 2.1 | 36.3 | 3635 |
| 3 | 95 | 1.6 | 2.2 | 40 | 4488 |
| 4 | 1.5 | 0.8 | 1.8 | 11.6 | 198 |
| 4 | 2.5 | 0.8 | 1.8 | 12.1 | 252 |
| 4 | 4 | 1 | 1.8 | 15.1 | 391 |
| 4 | 6 | 1 | 1.8 | 16.5 | 465 |
| 4 | 10 | 1 | 1.8 | 18.6 | 702 |
| 4 | 16 | 1 | 1.8 | 21.1 | 992 |
| 4 | 25 | 1.2 | 1.8 | 24.2 | 1431 |
| 4 | 35 | 1.2 | 1.8 | 26.6 | 1861 |
| 4 | 50 | 1.4 | 1.9 | 30.9 | 2535 |
| 4 | 70 | 1.4 | 2.1 | 35.1 | 3441 |
| 4 | 95 | 1.6 | 2.2 | 40.4 | 4691 |
| 4 | 120 | 1.6 | 2.4 | 44.2 | 5757 |
| 4 | 150 | 1.8 | 2.5 | 48.5 | 7095 |
| 4 | 185 | 2 | 2.7 | 53.9 | 8810 |
| 4 | 240 | 2.2 | 2.9 | 61.1 | 11400 |
| 5 | 1.5 | 10.8 | 1.8 | 12 | 232 |
| 5 | 2.5 | 0.8 | 1.8 | 13.1 | 302 |
| 5 | 4 | 1 | 1.8 | 16.6 | 477 |
| 5 | 6 | 1 | 1.8 | 18.2 | 618 |
| 5 | 10 | 1 | 1.8 | 20.3 | 853 |
| 5 | 16 | 1 | 1.8 | 23.1 | 1212 |
| 5 | 25 | 0.8 | 1.8 | 26.6 | 280 |
| 7 | 1.5 | 1 | 1.8 | 16.6 | 477 |
| 7 | 2.5 | 0.8 | 1.8 | 14.1 | 368 |
| 12 | 1.5 | 0.8 | 1.8 | 16.6 | 475 |
| 12 | 2.5 | 0.8 | 1.8 | 18.2 | 628 |
| 14 | 1.5 | 0.8 | 1.8 | 17.1 | 515 |
| 19 | 1.5 | 0.8 | 1.8 | 18.9 | 648 |
| 19 | 2.5 | 0.8 | 1.8 | 20.3 | 843 |
| 27 | 1.5 | 0.8 | 1.8 | 22.6 | 895 |
