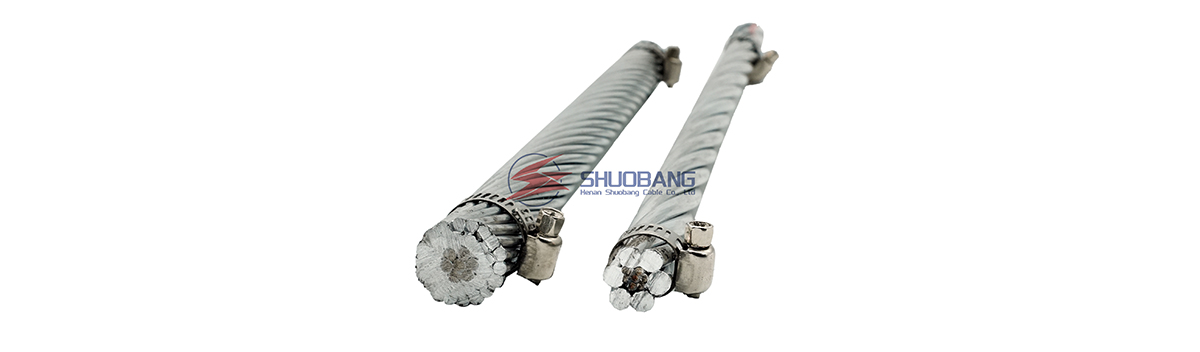

The bare conductor is made of hard-drawn aluminum (aluminum alloy) wire, reinforced with steel core, and continuously twisted at a certain pitch. The twist directions of adjacent layers of the conductor are opposite, and the outermost layer is twisted in the right direction.
Suitable for long-span overhead power transmission, low salt fog areas, overhead feeders and substation busbars, improving conductor strength without sacrificing current carrying capacity
GB/T 1179,ASTM B 232,DIN 48204,BS 215-2,BS-EN 50182 ,IEC 61089
Steel core aluminum stranded wire has the characteristics of simple structure, easy installation and maintenance, low line cost, large transmission capacity, and is conducive to laying across rivers and valleys and other special geographical conditions. It has good conductivity, sufficient mechanical strength, high tensile strength, and can expand the tower distance.
The conductor strength is greatly improved under the same current carrying capacity.

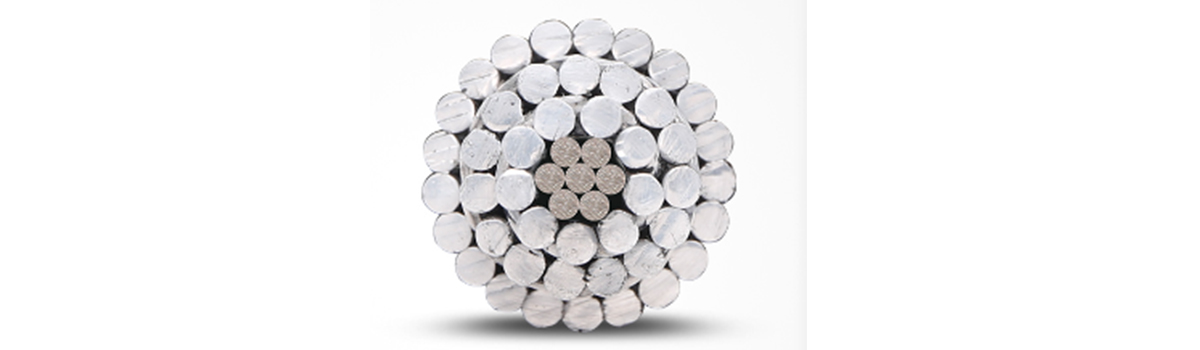

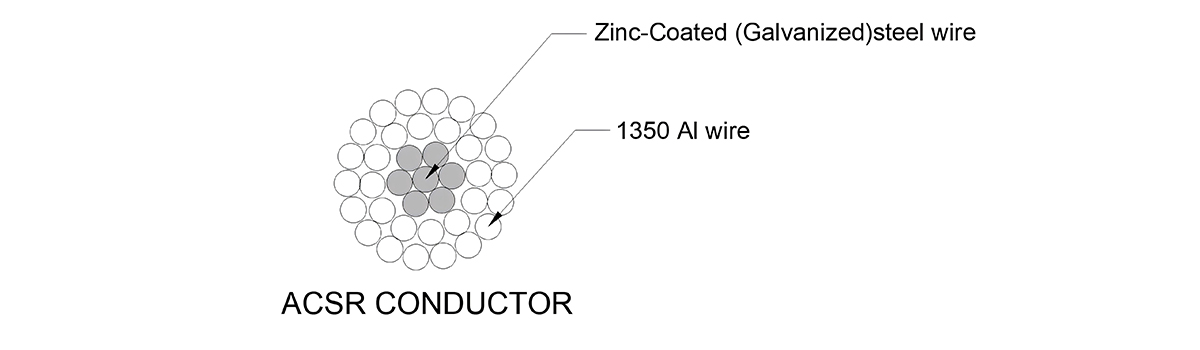

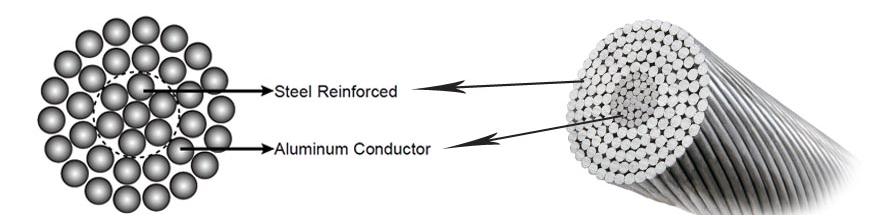

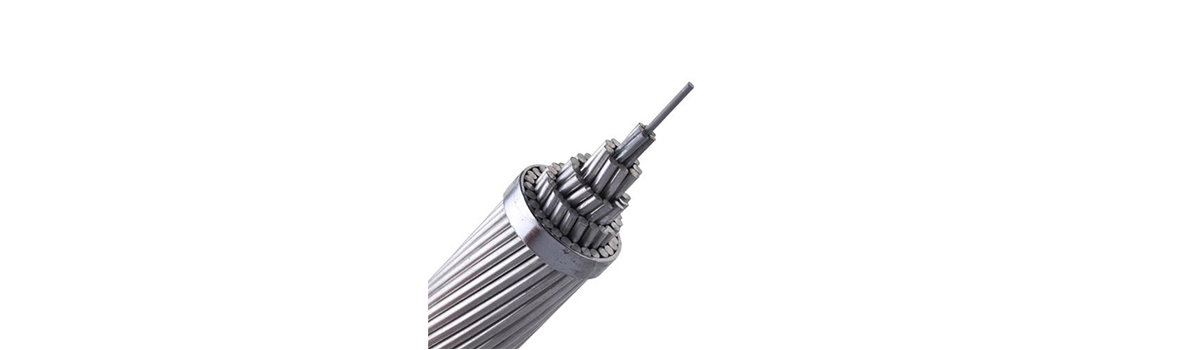

A solid or concentrically stranded central steel core is surrounded by one or more layers of concentrically stranded aluminum wire. The wires are zinc coated to protect them from corrosion. The wire or wires forming the core are made of galvanized steel and the outer layer or layers are made of aluminum. The galvanized steel core is usually composed of 1, 7 or 19 wires. The steel and aluminum wires can be the same or different diameters.
| ACSR Technical characteristics 1179-83 | ||||||||||||||||
| Nominal Area Aluminum/Steel mm2 | Stranding No./Dia. No./mm | Calculated Area mm2 | Overall Diameter mm | D.C. Resistance Ω/km | Calculated Breaking Load N | Linear mass | Continuous Carrying Capacity(A) | Weight | ||||||||
| Aluminum | Steel | Total. | Aluminum | Steel | ||||||||||||
| Aluminum | Steel | Aluminum | Steel | Total | kg/km | kg/km | kg/km | 70 ℃ | 80 ℃ | 90 ℃ | kg/km | kg/km | ||||
| 10/2 | 6/1.50 | 1/1.50 | 10.60 | 1.77 | 12.37 | 4.50 | 2.70600 | 4120 | 28.9 | 13.8 | 42.9 | 66 | 78 | 87 | 28.6 | 13.8 |
| 16/3 | 6/1.85 | 1/1.85 | 16.13 | 2.69 | 18.82 | 5.55 | 1.77900 | 6130 | 44.0 | 21.0 | 65.2 | 85 | 100 | 113 | 43.6 | 20.9 |
| 25/4 | 6/2.32 | 1/2.32 | 25.36 | 4.23 | 29.59 | 6.96 | 1.13100 | 9290 | 69.2 | 33.0 | 102.6 | 111 | 131 | 149 | 68.5 | 32.9 |
| 35/6 | 6/2.72 | 1/2.72 | 34.86 | 5.81 | 40.67 | 8.16 | 0.82300 | 12630 | 95.2 | 45.3 | 141.0 | 134 | 158 | 180 | 94.1 | 45.2 |
| 50/8 | 6/3.20 | 1/3. 20 | 48.25 | 8.04 | 56.29 | 9.60 | 0.59460 | 16870 | 131.7 | 62.7 | 195.1 | 161 | 191 | 218 | 130.3 | 62.6 |
| 50/30 | 12/2.32 | 7/2.32 | 50.73 | 29.59 | 80.32 | 11.60 | 0.56920 | 42620 | 138.5 | 233.1 | 372.0 | 166 | 195 | 218 | 137.0 | 230.2 |
| 70/10 | 6/3.80 | 1/3.80 | 68.05 | 11.34 | 79.39 | 11.40 | 0.42170 | 23390 | 185.8 | 88.5 | 275.2 | 194 | 232 | 266 | 183.7 | 88.2 |
| 70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.40 | 13.60 | 0.41410 | 58300 | 190.4 | 320.4 | 511.3 | 196 | 230 | 257 | 188.3 | 316.4 |
| 95/15 | 26/2.15 | 7/1.67 | 94.39 | 15.33 | 109.72 | 13.61 | 0.30580 | 35000 | 260.2 | 120.8 | 380.8 | 252 | 306 | 351 | 254.9 | 119.3 |
| 95/20 | 7/4.16 | 7/1.85 | 95.14 | 18.82 | 113.96 | 13.87 | 0.30190 | 37200 | 259.7 | 148.2 | 408.9 | 253 | 277 | 319 | 256.9 | 146.4 |
| 95/55 | 12/3.20 | 7/3.20 | 96.51 | 56.30 | 152.81 | 16.00 | 0.29920 | 78110 | 266.1 | 443.5 | 707.7 | 250 | 270 | 301 | 260.6 | 438.0 |
| 120/7 | 18/2.90 | 1/2.90 | 118.89 | 6.61 | 125.50 | 14.50 | 0.24220 | 27570 | 327.8 | 51.5 | 379.0 | 287 | 350 | 401 | 321.0 | 51.4 |
| 120/20 | 26/2.38 | 7/1.85 | 115.67 | 18.82 | 134.49 | 15.07 | 0.24960 | 41000 | 318.9 | 148.2 | 466.8 | 285 | 348 | 399 | 312.3 | 146.4 |
| 120/25 | 7/4.72 | 7/2.10 | 122.48 | 24.25 | 149.73 | 15.74 | 0.23450 | 47880 | 334.4 | 191.0 | 526.6 | 265 | 315 | 385 | 330.7 | 188.7 |
| 120/70 | 12/3.60 | 7/3.60 | 122.15 | 71.25 | 193.40 | 18.00 | 0.23640 | 98370 | 333.5 | 561.3 | 895.6 | 258 | 301 | 335 | 329.8 | 554.3 |
| 150/8 | 18/3.20 | 1/3.20 | 144.76 | 8.04 | 152.80 | 16.00 | 0.19890 | 32860 | 399.1 | 62.7 | 461.4 | 323 | 395 | 454 | 390.9 | 62.6 |
| 150/20 | 24/2.78 | 7/1.85 | 145.68 | 18.82 | 164.50 | 16.67 | 0.19800 | 46630 | 401.6 | 148.2 | 549.4 | 326 | 400 | 461 | 393.3 | 146.4 |
| 150/25 | 26/2.70 | 7/2.10 | 148.86 | 24.25 | 173.11 | 17.10 | 0.19390 | 54110 | 410.4 | 191.0 | 601.0 | 331 | 407 | 469 | 401.9 | 188.7 |
| 150/35 | 30/2.50 | 7/2.50 | 147.26 | 34.36 | 181.62 | 17.50 | 0.19620 | 65020 | 406.0 | 270.7 | 676.2 | 331 | 407 | 469 | 397.6 | 267.3 |
| 185/10 | 18/3.60 | 1/3.60 | 183.22 | 10.18 | 193.40 | 18.00 | 0.15720 | 40880 | 505.1 | 80.2 | 584.0 | 372 | 458 | 528 | 494.7 | 79.2 |
| 185/25 | 24/3.15 | 7/2.10 | 187.04 | 24.25 | 211.29 | 18.90 | 0.15420 | 59420 | 515.7 | 191.0 | 706.1 | 379 | 468 | 540 | 505.0 | 188.7 |
| 185/30 | 26/2.98 | 7/2.32 | 181.34 | 29.59 | 210.93 | 18.88 | 0.15900 | 64320 | 500.0 | 233.1 | 732.6 | 373 | 480 | 531 | 489.6 | 230.2 |
| 185/45 | 30/2.80 | 7/2.80 | 184.73 | 43.10 | 227.83 | 19.60 | 0.15640 | 80190 | 509.3 | 339.6 | 848.2 | 379 | 489 | 541 | 498.8 | 335.3 |
| 210/10 | 18/3.80 | 1/3.80 | 204.14 | 11.34 | 215.48 | 19.00 | 0.14110 | 45140 | 562.8 | 88.5 | 650.7 | 397 | 490 | 565 | 551.2 | 88.2 |
| 210/25 | 24/3.33 | 7/2.22 | 209.02 | 27.10 | 236.12 | 19.98 | 0.13800 | 65990 | 576.3 | 213.5 | 789.1 | 405 | 501 | 579 | 564.4 | 210.8 |
| 210/35 | 26/3.22 | 7/2.50 | 211.73 | 34.36 | 246.09 | 20.38 | 0.13630 | 74250 | 583.7 | 270.7 | 853.9 | 409 | 507 | 586 | 571.7 | 267.3 |
| 210/50 | 30/2 98 | 7/2.98 | 209.24 | 48.82 | 258.06 | 20.86 | 0.13810 | 90830 | 576.9 | 384.6 | 960.8 | 409 | 507 | 586 | 564.9 | 379.8 |
| 240/30 | 24/3.60 | 7/2.40 | 244.29 | 31.67 | 275.96 | 21.60 | 0.11810 | 75620 | 673.5 | 249.5 | 922.2 | 445 | 552 | 639 | 659.6 | 246.4 |
| 240/40 | 26/3.42 | 7/2.66 | 238.85 | 38.90 | 277.75 | 21.66 | 0.12090 | 83370 | 658.5 | 306.5 | 964.3 | 440 | 546 | 633 | 644.9 | 302.6 |
| 240/55 | 30/3.20 | 7/3.20 | 241.27 | 56.30 | 297.57 | 22.40 | 0.11980 | 102100 | 665.2 | 443.5 | 1108.0 | 445 | 554 | 641 | 651.4 | 438.0 |
| 300/15 | 42/3.00 | 7/1.67 | 296.88 | 15.33 | 312.21 | 23.01 | 0.09721 | 68060 | 818.5 | 120.8 | 939.8 | 495 | 615 | 711 | 801.6 | 119.3 |
| 300/20 | 45/2.93 | 7/1.95 | 303.42 | 20.91 | 324.33 | 23.43 | 0.09520 | 75650 | 836.5 | 164.7 | 1002.0 | 502 | 624 | 722 | 819.2 | 162.7 |
| 300/25 | 48/2.85 | 7/2.22 | 306.21 | 27.10 | 333.31 | 23.76 | 0.09433 | 83410 | 844.2 | 213.5 | 1058.0 | 505 | 628 | 726 | 826.8 | 210.8 |
| 300/40 | 24/3.99 | 7/2.66 | 300.09 | 38.90 | 338.99 | 23.94 | 0.09614 | 92220 | 827.4 | 306.5 | 1133.0 | 503 | 628 | 728 | 810.2 | 302.6 |
| 300/50 | 26/3.83 | 7/2.98 | 299.54 | 48.82 | 348.36 | 24.26 | 0.09636 | 103400 | 825.9 | 384.6 | 1210.0 | 504 | 629 | 730 | 808.8 | 379.8 |
| 300/70 | 30/3.60 | 7/3.60 | 305.36 | 71.25 | 376.61 | 25.20 | 0.09463 | 128000 | 841.9 | 561.3 | 1402.0 | 512 | 641 | 745 | 824.5 | 554.3 |
| 400/20 | 42/3.51 | 7/1.95 | 406.40 | 20.91 | 427.31 | 26.91 | 0.07104 | 88850 | 1120.5 | 164.7 | 1286.0 | 595 | 746 | 884 | 1097.3 | 162.7 |
| 400/25 | 45/3.33 | 7/2.22 | 391.91 | 27.10 | 419.01 | 26.64 | 0.07370 | 95940 | 1080.5 | 213.5 | 1295.0 | 584 | 730 | 845 | 1058.2 | 210.8 |
| 400/35 | 48/3.22 | 7/2.50 | 390.88 | 34.36 | 425.24 | 26.82 | 0.07389 | 103900 | 1077.7 | 270.7 | 1349.0 | 583 | 729 | 844 | 1055.4 | 267.3 |
| 400/50 | 54/3.07 | 7/3.07 | 399.73 | 51.82 | 451.55 | 27.63 | 0.07232 | 123400 | 1102.1 | 408.2 | 1511.0 | 592 | 741 | 857 | 1079.3 | 403.2 |
| 400/65 | 26/4.42 | 7/3.44 | 398.94 | 65.06 | 464.00 | 28.00 | 0.07236 | 135200 | 1099.9 | 512.5 | 1611.0 | 597 | 752 | 876 | 1077.1 | 506.2 |
| 400/95 | 30/4.16 | 19/2.50 | 407.75 | 93.27 | 501.02 | 29.14 | 0.07087 | 171300 | 1124.2 | 742.0 | 1860.0 | 608 | 767 | 895 | 1100.9 | 725.6 |
| 500/35 | 45/3.75 | 7/2.50 | 497.01 | 34.36 | 531.37 | 30.00 | 0.05812 | 119500 | 1370.3 | 270.7 | 1642.0 | 670 | 842 | 977 | 1341.9 | 267.3 |
| 500/45 | 48/3.60 | 7/2.80 | 488.58 | 43.10 | 531.68 | 30.00 | 0.05912 | 128100 | 1347.0 | 339.6 | 1688.0 | 664 | 834 | 967 | 1319.2 | 335.3 |
| 500/65 | 54/3.44 | 7/3.44 | 501.88 | 65.06 | 566.94 | 30.96 | 0.05760 | 154000 | 1383.7 | 512.5 | 1897.0 | 667 | 850 | 983 | 1355.1 | 506.2 |
| 630/45 | 45/4.2 | 7/2.80 | 623.45 | 43.10 | 666.55 | 33.60 | 0.04633 | 148700 | 1718.9 | 339.6 | 2060.0 | 763 | 964 | 1120 | 1683.3 | 335.3 |
| 630/55 | 48/4.12 | 7/3.20 | 639.92 | 56.30 | 696.22 | 34.32 | 0.04514 | 164400 | 1764.3 | 443.5 | 2209.0 | 775 | 979 | 1136 | 1727.8 | 438.0 |
| 630/80 | 54/3.87 | 19/2.32 | 635.19 | 80.32 | 715.51 | 34.82 | 0.04551 | 192900 | 1751.3 | 639.0 | 2388.0 | 774 | 977 | 1131 | 1715.0 | 624.9 |
| 720/50 | 45/4.53 | 36.24 | 0.0249 | 170600 | 1999.6 | 0.0 | 2397 | 830 | 1040 | 1220 | 0.0 | 0.0 | ||||
| 800/55 | 45/4.80 | 7/3.20 | 814.30 | 56.30 | 870.60 | 38.40 | 0.03547 | 191500 | 2245.1 | 443.5 | 2690.0 | 887 | 1126 | 1310 | 2198.6 | 438.0 |
| 800/70 | 48/4.63 | 7/3.60 | 808.15 | 71.25 | 879.40 | 38.58 | 0.03574 | 207000 | 2228.1 | 561.3 | 2791.0 | 884 | 1121 | 1301 | 2182.0 | 554.3 |
| 800/100 | 54/4.33 | 19/2.60 | 795.17 | 100.88 | 896.05 | 38.98 | 0.03635 | 241100 | 2192.3 | 802.6 | 2991.0 | 878 | 1113 | 1288 | 2147.0 | 784.8 |
| 1400/120 | 84/4.60 | 50.8 | 0.02072 | 355000 | 3848.9 | 0.0 | 4781 | 1270 | 1580 | 1805 | 0.0 | 0.0 | ||||
| 1400/135 | 88/4.50 | 51 | 0.02067 | 375300 | 3683.3 | 0.0 | 4927 | 1272 | 1583 | 1808 | 0.0 | 0.0 | ||||
| Technical characteristics / U.S.A Sizes - ASTM B232 | |||||||||||||
| Code name | Area | Stranding and diameter | Approximate overall diameter | Linear mass | Rated tensile strength | Maximum D.C. Resistance at 20℃ Ω/km | Current Rating |
||||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | ||||||
| AWG or MCM | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | A | ||
| wren | 8 | 8.34 | 1.39 | 9.73 | 6/1.33 | 1/1.33 | 3.99 | 22.8 | 10.8 | 33.6 | 308 | 3.43035 | 63 |
| Turkey | 6 | 13.29 | 2.19 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 36.3 | 17.3 | 53.6 | 524 | 2.15860 | 78 |
| Swan | 4 | 21.16 | 3.55 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 57.8 | 27.5 | 85.4 | 832 | 1.35570 | 105 |
| Swante | 4 | 21.16 | 5.35 | 26.50 | 7/1.96 | 1/2.61 | 6.53 | 57.7 | 41.7 | 99.4 | 1053 | 1.35570 | 104 |
| Swallow | 3 | 26.69 | 4.45 | 31.14 | 6/2.38 | 1/2.38 | 7.14 | 72.9 | 34.7 | 107.6 | 1021 | 1.07124 | 129 |
| Sparrow | 2 | 33.61 | 5.61 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 91.7 | 43.7 | 135.4 | 1270 | 0.85350 | 139 |
| Sparate | 2 | 33.61 | 8.52 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 91.6 | 66.7 | 158.3 | 1611 | 0.85350 | 138 |
| Robin | 1 | 42.39 | 7.10 | 49.49 | 6/3.00 | 1/3.00 | 9.00 | 115.8 | 55.1 | 170.9 | 1585 | 0.67670 | 160 |
| Raven | 0 | 53.48 | 8.90 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 146.1 | 69.6 | 215.7 | 1932 | 0.53640 | 183 |
| Quail | 2/0 | 67.42 | 11.23 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 183.8 | 87.5 | 271.4 | 2362 | 0.42550 | 210 |
| Pigeon | 3/0 | 85.03 | 14.19 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 232.4 | 110.7 | 343.0 | 2941 | 0.33730 | 241 |
| Penguin | 4/0 | 107.23 | 17.87 | 125.10 | 6/4.77 | 1/4.77 | 14.31 | 292.7 | 139.4 | 432.1 | 3706 | 0.26750 | 276 |
| Waxwing | 266.800 | 135.16 | 7.48 | 142.64 | 18/3.09 | 1/3.09 | 15.45 | 372.2 | 58.5 | 430.7 | 3027 | 0.21330 | 319 |
| Partridge | 266.800 | 135.16 | 22.00 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 371.9 | 173.2 | 545.1 | 5029 | 0.21430 | 323 |
| Ostrich | 300.000 | 152.00 | 24.71 | 176.71 | 26/2.73 | 7/2.12 | 17.28 | 419.6 | 194.7 | 614.3 | 5652 | 0.19060 | 346 |
| Merlin | 336.400 | 170.45 | 9.48 | 179.93 | 18/3.47 | 1/3.47 | 17.35 | 469.3 | 73.8 | 543.1 | 3823 | 0.16910 | 386 |
| Linnet | 336.400 | 170.45 | 27.81 | 198.26 | 26/2.89 | 7/2.25 | 18.31 | 470.2 | 219.3 | 689.5 | 6271 | 0.16990 | 371 |
| Oriole | 336.400 | 170.45 | 39.81 | 210.26 | 30/2.69 | 7/2.69 | 18.83 | 470.1 | 313.4 | 783.5 | 7745 | 0.17040 | 372 |
| Chickadee | 397.500 | 201.42 | 11. 16 | 212.58 | 18/3.77 | 1/3.77 | 18.85 | 554.0 | 87.1 | 641.0 | 4399 | 0.14310 | 403 |
| Brant | 397.500 | 201.42 | 26.13 | 227.55 | 24/3.27 | 7/2.18 | 19.61 | 555.7 | 205.8 | 761.5 | 6469 | 0.14380 | 405 |
| Ibis | 397.500 | 201.42 | 32.77 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 555.1 | 257.9 | 813.0 | 7211 | 0.14380 | 403 |
| Lark | 397.500 | 201.42 | 46.97 | 248.39 | 30/2.92 | 7/2.92 | 20.44 | 553.9 | 369.3 | 923.2 | 8869 | 0.14420 | 410 |
| Pelican | 477.000 | 241.68 | 13.42 | 255.10 | 18/4.14 | 1/4.14 | 20.70 | 668.1 | 105.0 | 773.1 | 5216 | 0.11930 | 449 |
| Flicker | 477.000 | 241.68 | 31.29 | 272.97 | 24/3.58 | 7/2.39 | 21.49 | 666.1 | 247.4 | 913.5 | 7666 | 0.11990 | 454 |
| Hawk | 477.000 | 241.68 | 39.42 | 281.10 | 26/3.44 | 7/2.67 | 21.79 | 666.2 | 308.8 | 975.0 | 8665 | 0.11990 | 455 |
| Hen | 477.000 | 241.68 | 56.39 | 298.07 | 30/3.20 | 7/3.20 | 22.40 | 665.2 | 443.5 | 1108.7 | 10534 | 0.12010 | 457 |
| Osprey | 556.500 | 282.00 | 15.68 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 778.8 | 122.4 | 901.2 | 6088 | 0.10220 | 492 |
| Parakeet | 556.500 | 282.00 | 36.58 | 318.58 | 24/3.87 | 7/2.58 | 23.22 | 778.3 | 288.3 | 1066.6 | 8822 | 0.10270 | 492 |
| Dove | 556.500 | 282.00 | 45.94 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 779.1 | 361.7 | 1140.8 | 10103 | 0.10270 | 499 |
| Eagle | 556.500 | 282.00 | 65.81 | 347.81 | 30/3.46 | 7/3.46 | 24.21 | 777.7 | 518.5 | 1296.2 | 13392 | 0.10300 | 500 |
| Peacock | 605.000 | 306.58 | 39.74 | 346.32 | 24/4.03 | 7/2.69 | 24.20 | 844.0 | 313.4 | 1157.4 | 9588 | 0.09450 | 522 |
| Squab | 605.000 | 306.58 | 49.94 | 356.52 | 26/3.87 | 7/3.01 | 24.51 | 843.2 | 392.4 | 1235.6 | 10841 | 0.09450 | 523 |
| Wood duck | 605.000 | 306.58 | 71.55 | 378.13 | 30/3.61 | 7/3.61 | 25.25 | 846.6 | 564.4 | 1411.0 | 12884 | 0.09470 | 523 |
| Teal | 605.000 | 306.58 | 69.87 | 376.45 | 30/3.61 | 19/2.16 | 25.24 | 846.6 | 553.9 | 1400.5 | 13359 | 0.09470 | 527 |
| Kingbird | 636.000 | 322.26 | 17.90 | 340.16 | 18/4.78 | 1/4.78 | 23.88 | 890.6 | 140.0 | 1030.5 | 6956 | 0.08945 | 530 |
| Rook | 636.000 | 322.26 | 41.81 | 364.07 | 24/4.14 | 7/2.76 | 24.84 | 890.7 | 329.9 | 1220.7 | 10083 | 0.08989 | 537 |
| Grosbeak | 636.000 | 322.26 | 52.45 | 374.71 | 26/3.97 | 7/3.09 | 25.15 | 887.3 | 413.5 | 1300.9 | 11180 | 0.08989 | 538 |
| Scoter | 636.000 | 322.26 | 75.22 | 394.48 | 30/3.70 | 7/3.70 | 25.88 | 889.3 | 592.9 | 1482.3 | 13544 | 0.09011 | 541 |
| Egret | 636.000 | 322.26 | 73.55 | 395.81 | 30/3.70 | 19/2.22 | 25.90 | 889.3 | 585.1 | 1474.4 | 14055 | 0.09011 | 542 |
| Swift | 636.000 | 322.26 | 8.96 | 331.22 | 36/3.38 | 1/3.38 | 23.62 | 890.6 | 70.0 | 960.6 | 6052 | 0.08945 | 545 |
| Flamingo | 666.600 | 337.74 | 43.81 | 381.55 | 24/4.23 | 7/2.82 | 25.40 | 929.9 | 344.4 | 1274.3 | 10566 | 0.08577 | 552 |
| Gannet | 666.600 | 337.74 | 55.03 | 392.77 | 26/4.07 | 7/3.16 | 25.76 | 932.6 | 432.5 | 1365.1 | 11733 | 0.08577 | 618 |
| Stilt | 715.500 | 362.58 | 46.97 | 409.55 | 24/4.39 | 7/2.92 | 26.31 | 1001.6 | 369.3 | 1370.9 | 11335 | 0.07989 | 577 |
| Starling | 715.500 | 362.58 | 59.03 | 421.61 | 26/4.21 | 7/3.28 | 26.68 | 997.9 | 466.0 | 1463.8 | 12591 | 0.07989 | 578 |
| Redwing | 715.500 | 362.58 | 82.58 | 445.16 | 30/3.92 | 19/2.35 | 27.43 | 998.2 | 655.7 | 1653.9 | 15394 | 0.08009 | 581 |
| Tern | 795.000 | 402.84 | 27.87 | 430.71 | 45/3.38 | 7/2.25 | 27.03 | 1113.2 | 219.3 | 1332.5 | 9737 | 0.07191 | 610 |
| Condor | 795.000 | 402.84 | 52.19 | 455.03 | 54/3.08 | 7/3.08 | 27.72 | 1109.3 | 410.9 | 1520.1 | 12445 | 0.07911 | 614 |
| Cuckoo | 795.000 | 402.84 | 52.19 | 455.03 | 24/4.62 | 7/3.08 | 27.74 | 1109.3 | 410.9 | 1520.1 | 12394 | 0.07191 | 614 |
| Drake | 795.000 | 402.84 | 65.51 | 468.45 | 26/4.44 | 7/3.45 | 28.11 | 1109.9 | 515.5 | 1625.4 | 13992 | 0.07191 | 614 |
| Coot | 795.000 | 402.84 | 11.16 | 414.00 | 36/3.77 | 1/3.77 | 26.41 | 1108.0 | 87.1 | 1195.0 | 7485 | 0.07156 | 614 |
| Mallard | 795.000 | 402.84 | 91.87 | 484.71 | 30/4.14 | 19/2.48 | 28.96 | 1113.4 | 730.2 | 1843.6 | 17118 | 0.07208 | 618 |
| Ruddy | 900.000 | 456.06 | 31.54 | 487.60 | 45/3.59 | 7/2.40 | 28.73 | 1255.9 | 249.5 | 1505.3 | 10931 | 0.06351 | 656 |
| Canary | 900.000 | 456.06 | 59.10 | 515.16 | 54/3.28 | 7/3.28 | 29.52 | 1258.0 | 466.0 | 1724.0 | 14095 | 0.06351 | 660 |
| Rail | 954.000 | 483.42 | 33.42 | 516.84 | 45/3.70 | 7/2.47 | 29.61 | 1334.0 | 264.2 | 1598.2 | 11585 | 0.05992 | 679 |
| Catbird | 954.000 | 483.42 | 13.42 | 496. 84 | 36/4.14 | 1/4.14 | 28.95 | 1336.1 | 105.0 | 1441.1 | 8766 | 0.05962 | 679 |
| Cardinal | 954.000 | 483.42 | 62.65 | 546. 07 | 54/3.38 | 7/3.38 | 30.42 | 1335.9 | 494.8 | 1830.7 | 14936 | 0.05992 | 681 |
| Ortolan | 1033.500 | 523.68 | 36.19 | 559. 87 | 45/3.85 | 7/2.57 | 30.81 | 1444.3 | 286.1 | 1730.4 | 12310 | 0.05331 | 712 |
| Tanager | 1033.500 | 523.68 | 14.51 | 538.19 | 36/4.30 | 1/4.30 | 30.12 | 1441.4 | 113.3 | 1554.6 | 9493 | 0.05504 | 705 |
| Curlew | 1033.500 | 523.68 | 67.87 | 591.55 | 54/3.52 | 7/3.52 | 31.68 | 1448.8 | 536.6 | 1985.5 | 16180 | 0.05531 | 715 |
| Bluejay | 1113.000 | 563.93 | 39.03 | 602.96 | 45/4.00 | 7/2.66 | 31.98 | 1559.1 | 306.5 | 1865.5 | 13263 | 0.05136 | 743 |
| Finch. | 1113.000 | 563.93 | 71.55 | 635.48 | 54/3.65 | 19/2.19 | 32.85 | 1557.8 | 569.4 | 2127.2 | 17441 | 0.05161 | 746 |
| Bunting | 1192.500 | 604.26 | 41.55 | 645.81 | 45/4.14 | 7/2.76 | 33.12 | 1682.3 | 329.9 | 2012.2 | 14179 | 0.04793 | 772 |
| Grackle | 1192.500 | 604.26 | 76.58 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 1661.9 | 611.8 | 2273.7 | 18678 | 0.04817 | 773 |
| Bittern | 1272.000 | 644.51 | 44.52 | 689.03 | 45/4.27 | 7/2.85 | 34.17 | 1776.7 | 351.8 | 2128.5 | 15148 | 0.04494 | 802 |
| Pheasant | 1272.000 | 644.51 | 81.63 | 726.19 | 54/3.90 | 19/2.34 | 35.10 | 1778.5 | 650.1 | 2428.6 | 19400 | 0.04516 | 807 |
| Skylark | 1272.000 | 644.51 | 17.87 | 662.38 | 36/4.78 | 1/4.78 | 33.42 | 1781.1 | 140.0 | 1921.1 | 11585 | 0.04472 | 807 |
| Dipper | 1351.500 | 684.84 | 47.10 | 731.94 | 45/4.40 | 7/2.92 | 35.16 | 1886.5 | 369.3 | 2255.8 | 16070 | 0.04230 | 831 |
| Martin | 1351.500 | 684.84 | 88.71 | 771.55 | 54/4.02 | 19/2.41 | 36.17 | 1889.7 | 689.6 | 2579.2 | 20605 | 0.04250 | 835 |
| Bobolink | 1431.000 | 725.10 | 50.32 | 775.42 | 45/4.53 | 7/3.02 | 36.24 | 1999.6 | 395.0 | 2394.6 | 17071 | 0.03994 | 859 |
| Plover | 1431.000 | 725.10 | 91.87 | 816.97 | 54/4.14 | 19/2.48 | 37.24 | 2004.2 | 730.2 | 2734.4 | 21824 | 0.04013 | 862 |
| Nuthatch | 1510.500 | 765.35 | 52.90 | 818.25 | 45/4.65 | 7/3.10 | 37.20 | 2107.0 | 416.2 | 2523.2 | 17789 | 0.03784 | 886 |
| Parrot | 1510.500 | 765.35 | 96.84 | 862.19 | 54/4.25 | 19/2.55 | 38.25 | 2112.1 | 772.0 | 2884.1 | 23020 | 0.03802 | 890 |
| Lapwing | 1590.000 | 805.68 | 55.48 | 861.16 | 45/4.77 | 7/3.18 | 38.16 | 2217.1 | 438.0 | 2655.1 | 18702 | 0.03595 | 911 |
| Falcon | 1590.000 | 805.68 | 102.10 | 907.81 | 54/4.36 | 19/2.62 | 39.26 | 2222.8 | 815.0 | 3037.8 | 24255 | 0.03613 | 917 |
| Chukar | 1780.000 | 902.70 | 73.51 | 902.72 | 84/3.70 | 19/2.22 | 40.70 | 2490.1 | 585.1 | 3075.2 | 22685 | 0.03245 | 975 |
| BlueBird | 2156.000 | 1092.00 | 88.80 | 1092.28 | 84/4.07 | 19/2.44 | 44.76 | 3013.0 | 706.8 | 3719.9 | 26830 | 0.02681 | 1180 |
| Kiwi | 2167.000 | 1100.00 | 47.50 | 1099.20 | 72/4.41 | 7/2.94 | 44.07 | 3032.1 | 374.4 | 3406.5 | 22160 | 0.02684 | 1188 |
| Thrasher | 2312.000 | 1170.80 | 65.15 | 1170.80 | 76/4.43 | 19/2.09 | 45.90 | 3229.7 | 518.6 | 3748.3 | 25300 | 0.02478 | 1260 |
| Grouse | 80.000 | 40.52 | 14.13 | 54.65 | 8/2.54 | 1/4.24 | 9.32 | 110.7 | 111.2 | 221.9 | 2360 | 0.71150 | 155 |
| Petrel | 101.800 | 51.61 | 30.06 | 81.67 | 12/2.34 | 7/2.34 | 11.71 | 140.9 | 237.2 | 378.0 | 4715 | 0.56130 | 187 |
| Minorca | 110.800 | 56.13 | 32.77 | 88.90 | 12/2.44 | 7/2.44 | 12.22 | 153.2 | 257.9 | 411.0 | 5125 | 0.51610 | 197 |
| Leghorn | 134.600 | 68.19 | 39.81 | 108.00 | 12/2.69 | 7/2.69 | 13.46 | 186.2 | 313.4 | 499.6 | 6170 | 0.42480 | 221 |
| Guinea | 159.000 | 80.58 | 46.97 | 127.55 | 12/2.92 | 7/2.92 | 14.63 | 219.4 | 369.3 | 588.7 | 7255 | 0.35950 | 244 |
| Dotterel | 176.900 | 89.48 | 52.19 | 141.67 | 12/3.08 | 7/3.08 | 15.42 | 244.1 | 410.9 | 655.0 | 7850 | 0.32370 | 260 |
| Dorking | 190.800 | 96.71 | 56.39 | 153.10 | 12/3.20 | 7/3.20 | 16.03 | 263.5 | 443.5 | 707.0 | 8480 | 0.29950 | 272 |
| Brahma | 203.200 | 102.97 | 91.87 | 194.84 | 16/2.86 | 19/2.48 | 18.14 | 280.6 | 730.2 | 1010.8 | 12880 | 0.28130 | 288 |
| Cochin | 211.300 | 107.10 | 62.45 | 169.55 | 12/3.37 | 7/3.37 | 16.84 | 292.2 | 491.9 | 784.1 | 9390 | 0.27050 | 287 |
| ACSR Technical characteristics / BS215 | |||||||||||||||||
| Code name | Nominal aluminum area mm2 | Stranding structure | Sectional area of aluminum | Total sectional area | Overall diameter | Linear mass | Calculated breaking load | Calculate D.C resistance at 20℃ | Final modulus of elasticity | Coefficient of linear expansion | weight | weight | |||||
| Aluminum | Steel | Total. | Aluminum | Steel | |||||||||||||
| Al. No. | Al. Dia. | St. No. | St. Dia | mm2 | mm2 | mm | kg/km | kg/km | kg/km | daN | Ω/km | hBar | /℃ | kg/km | kg/km | ||
| Mole | 10 | 6 | 1.50 | 1 | 1.50 | 10.62 | 12.39 | 4.50 | 28.9 | 13.8 | 42.7 | 414 | 2.7060 | 7900 | 19.1Χ10-6 | 28.7 | 14.0 |
| Squirrel | 20 | 6 | 2.11 | 1 | 2.11 | 20.94 | 24.43 | 6.33 | 57.3 | 27.3 | 84.6 | 788 | 1.3680 | 7900 | 19. lΧ10-6 | 56.6 | 28.0 |
| Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 26.24 | 30.62 | 7.08 | 71.7 | 34.1 | 105.8 | 961 | 1.0930 | 7900 | 19.1Χ10-6 | 70.9 | 34.9 |
| Weasel | 30 | 6 | 2.59 | 1 | 2.59 | 31.61 | 36.88 | 7.77 | 86.3 | 41.1 | 127.4 | 1146 | 0.9077 | 7900 | 19.1Χ10-6 | 85.4 | 42.0 |
| Fox | 35 | 6 | 2.79 | 1 | 2.79 | 36.66 | 42.77 | 8.37 | 100.1 | 47.7 | 147.8 | 1320 | 0.7822 | 7900 | 19.1Χ10-6 | 99.1 | 48.8 |
| Ferret | 40 | 6 | 3.00 | 1 | 3.00 | 42.41 | 49.48 | 9.00 | 115.8 | 55.1 | 170.9 | 1520 | 0.6766 | 7900 | 19.1Χ10-6 | 114.6 | 56.3 |
| Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 52.88 | 61.70 | 10.05 | 144.4 | 68.8 | 213.1 | 1835 | 0.5426 | 7900 | 19.1Χ10-6 | 142.9 | 70.2 |
| Mink | 60 | 6 | 3.66 | 1 | 3.66 | 63.18 | 73.71 | 10.98 | 172.3 | 82.1 | 254.4 | 2180 | 0.4545 | 7900 | 19.1Χ10-6 | 170.7 | 83.7 |
| Skunk | 60 | 12 | 2.59 | 7 | 2.59 | 63.27 | 100.30 | 12.95 | 172.6 | 287.7 | 460.3 | 5300 | 0.4567 | 7900 | 15.3Χ10-6 | 171.0 | 289.3 |
| Beaver | 70 | 6 | 3.99 | 1 | 3.99 | 74.82 | 87.29 | 11.97 | 204.8 | 97.5 | 302.3 | 2570 | 0.3825 | 7900 | 19.1Χ10-6 | 202.2 | 100.2 |
| Horse | 70 | 12 | 2.79 | 7 | 2.79 | 73.37 | 116.20 | 13.95 | 200.3 | 333.8 | 534.1 | 6120 | 0.3936 | 10500 | 19.1Χ10-6 | 198.2 | 335.8 |
| Racoon | 75 | 6 | 4.10 | 1 | 4.10 | 79.20 | 92.40 | 12.30 | 216.3 | 103.0 | 319.2 | 2720 | 0.3622 | 7900 | 15.3Χ10-6 | 214.0 | 105.2 |
| Otter | 80 | 6 | 4.22 | 1 | 4.22 | 83.88 | 97.86 | 12.66 | 229.1 | 109.1 | 338.2 | 2880 | 0.3419 | 7900 | 19.1Χ10-6 | 226.6 | 111.6 |
| Cat | 90 | 6 | 4.50 | 1 | 4.50 | 95.40 | 111.30 | 15.90 | 260.5 | 124.1 | 384.6 | 3270 | 0.3007 | 7900 | 19. lΧ10-6 | 257.8 | 126.8 |
| Hare | 100 | 6 | 4.72 | 1 | 4.72 | 105.00 | 122.50 | 17.50 | 286.6 | 136.5 | 423.1 | 3600 | 0.2733 | 7900 | 19. 1×10-6 | 283.7 | 139.4 |
| Dog | 100 | 6 | 4.72 | 7 | 1.57 | 105.00 | 118.50 | 14.15 | 286.6 | 105.7 | 392.3 | 3270 | 0.2733 | 7500 | 19.8Χ10-6 | 283.7 | 108.6 |
| Hyena | 100 | 7 | 4.39 | 7 | 1.93 | 105.80 | 126.20 | 14.57 | 289.3 | 159.7 | 449.0 | 4090 | 0.2712 | 7500 | 19.8Χ10-6 | 285.9 | 163.1 |
| Leopard | 125 | 8 | 5.28 | 7 | 1.75 | 131.30 | 148.10 | 15.81 | 478.2 | 131.3 | 609.5 | 4070 | 0.2184 | 7500 | 19.8Χ10-6 | 354.8 | 254.8 |
| Coyote | 125 | 26 | 2.54 | 7 | 1.91 | 132.10 | 152.20 | 15.89 | 363.2 | 156.4 | 519.7 | 4640 | 0.2187 | 8500 | 17.0Χ10-6 | 356.9 | 162.7 |
| Congar | 125 | 18 | 3.05 | 1 | 3.05 | 130.30 | 137.50 | 15.25 | 362.6 | 57.0 | 419.6 | 2980 | 0.2189 | 6600 | 21.2Χ10-6 | 352.1 | 67.5 |
| Tiger | 125 | 30 | 2.36 | 7 | 2.36 | 131.10 | 161.70 | 16.52 | 361.8 | 238.8 | 600.7 | 5800 | 0.2202 | 8000 | 17.8Χ10-6 | 354.2 | 246.4 |
| Dingo | 150 | 18 | 3.35 | 1 | 3.35 | 158.70 | 167.50 | 16.75 | 437.4 | 68.8 | 506.2 | 3570 | 0.1815 | 6600 | 21.2Χ10-6 | 428.8 | 77.4 |
| Wolf | 150 | 30 | 2.59 | 7 | 2.59 | 158.10 | 194.90 | 18.13 | 435.8 | 287.7 | 723.4 | 6920 | 0.1828 | 8000 | 17.8Χ10-6 | 427.2 | 296.2 |
| Caracal | 175 | 18 | 3.61 | 1 | 3.61 | 184.30 | 194.50 | 18.05 | 508.0 | 79.8 | 587.8 | 4110 | 0.1563 | 6600 | 21.2Χ10-6 | 498.0 | 89.8 |
| Lynx | 175 | 30 | 2.79 | 7 | 2.79 | 183.40 | 226.20 | 19.53 | 505.7 | 333.8 | 839.5 | 7980 | 0.1576 | 8000 | 17.8Χ10-6 | 495.5 | 343.9 |
| Jaguar | 200 | 18 | 3.86 | 1 | 3.86 | 210.60 | 222.30 | 19.30 | 580.7 | 91.3 | 672.0 | 4655 | 0.1367 | 6600 | 21.2Χ10-6 | 569.0 | 103.0 |
| Panther | 200 | 30 | 3.00 | 7 | 3.00 | 212.10 | 261.50 | 21.00 | 584.7 | 385.9 | 970.6 | 9225 | 0.1363 | 8000 | 17.8Χ10-6 | 573.1 | 397.5 |
| Lion | 225 | 30 | 3.18 | 7 | 3.18 | 238.50 | 294.20 | 22.26 | 656.9 | 433.6 | 1090.6 | 10060 | 0.1212 | 8000 | 17.8Χ10-6 | 644.4 | 446.1 |
| Bear | 250 | 30 | 3.35 | 7 | 3.35 | 264.00 | 325.60 | 23.45 | 729.0 | 481.3 | 1210.3 | 11110 | 0.1093 | 8000 | 17.8Χ10-6 | 713.3 | 497.0 |
| Goat | 300 | 30 | 3.71 | 7 | 3.71 | 324.30 | 400.00 | 25.97 | 894.1 | 590.2 | 1484.4 | 13570 | 0.0891 | 8000 | 17.8Χ10-6 | 876.3 | 608.1 |
| Sheep | 350 | 30 | 3.99 | 7 | 3.99 | 374.10 | 461.40 | 27.93 | 1034.2 | 682.7 | 1716.9 | 15590 | 0.0770 | 8000 | 17.8Χ10-6 | 1010.8 | 706.1 |
| Antilope | 350 | 54 | 2.97 | 7 | 2.97 | 373.10 | 421.50 | 26.73 | 1031.4 | 378.3 | 1409.7 | 11820 | 0.0773 | 6900 | 19.3Χ10-6 | 1008.1 | 401.6 |
| Bison | 350 | 54 | 3.00 | 7 | 3.00 | 381.80 | 431.30 | 27.00 | 1052.4 | 385.9 | 1438.3 | 12090 | 0.0757 | 6900 | 19.3x10-6 | 1031.6 | 406.7 |
| Deer | 400 | 30 | 4.27 | 7 | 4.27 | 429.30 | 529.50 | 28.89 | 1184.4 | 781.9 | 1966.3 | 17850 | 0.0674 | 8000 | 17.8Χ10-6 | 1160.0 | 806.4 |
| Zebra | 400 | 54 | 3.18 | 7 | 3.18 | 428.90 | 484.50 | 28.62 | 1182.5 | 433.6 | 1616.1 | 13190 | 0.0674 | 6900 | 19.3Χ10-6 | 1158.9 | 457.2 |
| ELK | 450 | 30 | 4.50 | 7 | 4.50 | 477.00 | 588.30 | 31.50 | 1315.5 | 868.4 | 2183.9 | 19820 | 0.0606 | 8000 | 17.8Χ10-6 | 1288.9 | 895.0 |
| Camel | 450 | 54 | 3.35 | 7 | 3.35 | 475.20 | 536.80 | 30.15 | 1312.3 | 481.3 | 1793.5 | 14570 | 0.0607 | 6900 | 19.3Χ10-6 | 1284.0 | 509.5 |
| Moose | 500 | 54 | 3.53 | 7 | 3.53 | 528.70 | 597.20 | 31.77 | 1457.1 | 534.4 | 1991.4 | 16110 | 0.0547 | 6900 | 19.3Χ10-6 | 1428.5 | 562.9 |
| Finch | 500 | 54 | 3.65 | 19 | 2.29 | 564.70 | 642.90 | 33.35 | 1557.8 | 610.4 | 2168.2 | 18070 | 0.0512 | 6800 | 18.3Χ10-6 | 1525.8 | 642.4 |
| ACSR Technical characteristics / DIN 48204 | |||||||||||||
| Area | Standing and wire diameter | Overall diameter | Linear mass | Nominal breaking load | Maximum resistance at 20°C | weight | weight | ||||||
| Nominal. | Actual | ||||||||||||
| Al/Steel | Al | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | Aluminum | Steel | |||
| mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | Ω/km | kg/km | kg/km | |
| 16/2.5 | 15.00 | 2.50 | 17.80 | 6/1.80 | 1/1.80 | 5.40 | 41.7 | 19.8 | 61.5 | 595 | 1.87800 | 40.5 | 19.5 |
| 25/4.0 | 23.80 | 4.00 | 27.80 | 6/2.25 | 1/2.25 | 6.80 | 65.1 | 31.0 | 96.1 | 920 | 1.20020 | 64.3 | 31.1 |
| 35/6.0 | 34.30 | 5.70 | 40.00 | 6/2.70 | 1/2.70 | 8.10 | 93.8 | 44.7 | 138.4 | 1265 | 0.83520 | 92.6 | 44.3 |
| 44/32.0 | 44.00 | 31.70 | 75.70 | 14/2.00 | 7/2.40 | 11.20 | 120.1 | 249.5 | 369.5 | 4500 | 0.65730 | 118.8 | 246.6 |
| 50/8.0 | 48.30 | 8.00 | 56.30 | 6/3.20 | 1/3.20 | 9.60 | 131.7 | 62.7 | 194.5 | 1710 | 0.59460 | 130.4 | 62.2 |
| 50/30 | 51.20 | 29.80 | 81.00 | 12/2.33 | 7/2.33 | 11.70 | 139.7 | 235.1 | 374.8 | 4380 | 0.56430 | 138.2 | 231.8 |
| 70/12 | 69.90 | 11.40 | 81.30 | 26/1.85 | 7/1.44 | 11.70 | 192.7 | 89.8 | 282.5 | 2680 | 0.41300 | 188.7 | 88.7 |
| 95/15 | 94.40 | 15.30 | 109.70 | 26/2.15 | 7/1.67 | 13.60 | 260.2 | 120.8 | 381.0 | 3575 | 0.30580 | 254.9 | 119.0 |
| 95/55 | 96.50 | 56.30 | 152.80 | 12/3.20 | 7/3.20 | 16.00 | 263.5 | 443.5 | 707.0 | 7935 | 0.29920 | 260.6 | 438.0 |
| 105/75 | 105.70 | 75.50 | 181.50 | 14/3.10 | 19/2.25 | 17.50 | 288.5 | 601.0 | 889.5 | 10845 | 0.27350 | 285.4 | 587.4 |
| 120/20 | 121.06 | 19.80 | 141.40 | 26/2.44 | 7/1.90 | 15.50 | 335.2 | 156.4 | 491.5 | 4565 | 0.23740 | 326.9 | 154.0 |
| 120/70 | 122.00 | 71.30 | 193.30 | 12/3.60 | 7/3.60 | 18.00 | 333.5 | 561.3 | 894.8 | 10000 | 0.23640 | 329.4 | 554.7 |
| 125/30 | 127.90 | 29.80 | 157.70 | 30/2.33 | 7/2.33 | 16.30 | 352.7 | 235.1 | 587.8 | 5760 | 0.22590 | 345.3 | 231.8 |
| 150/25 | 148.90 | 24.20 | 173.10 | 26/2.70 | 7/2.10 | 17.10 | 410.4 | 191.0 | 601.4 | 5525 | 0.19390 | 402.0 | 188.3 |
| 170/40 | 171.80 | 40.10 | 211.90 | 30/2.70 | 7/2.70 | 18.90 | 473.6 | 315.7 | 789.3 | 7675 | 0.16820 | 463.9 | 312.0 |
| 185/30 | 183.80 | 29.80 | 213.60 | 26/3.00 | 7/2.33 | 19.00 | 506.7 | 235.1 | 741.8 | 6620 | 0.15710 | 496.3 | 231.8 |
| 210/35 | 209.10 | 34.10 | 243.20 | 26/3.20 | 7/2.49 | 20.30 | 576.5 | 268.5 | 845.1 | 7490 | 0.13800 | 564.6 | 265.3 |
| 210/50 | 212.10 | 49.50 | 261.60 | 30/3.00 | 7/3.00 | 21.00 | 584.7 | 389.8 | 974.5 | 9390 | 0.13620 | 572.7 | 385.1 |
| 230/30 | 230.90 | 29.80 | 260.70 | 24/3.50 | 7/2.33 | 21.00 | 636.6 | 235.1 | 871.8 | 7310 | 0.12490 | 623.4 | 231.8 |
| 240/40 | 243.00 | 39.50 | 282.50 | 26/3.45 | 7/2.68 | 21.90 | 670.1 | 311.1 | 981.2 | 8640 | 0.11880 | 656.1 | 307.3 |
| 265/35 | 263.70 | 34.10 | 297.80 | 24/3.74 | 7/2.49 | 22.40 | 726.9 | 268.5 | 995.5 | 8305 | 0.10940 | 712.0 | 265.3 |
| 300/50 | 304.30 | 49.50 | 353.70 | 26/3.86 | 7/3.00 | 24.50 | 838.9 | 389.8 | 1228.7 | 10700 | 0.09487 | 821.6 | 385.1 |
| 305/40 | 304.60 | 39.50 | 344.10 | 54/2.68 | 7/2.68 | 24.10 | 839.8 | 311.1 | 1150.9 | 9940 | 0.09490 | 822.4 | 307.3 |
| 340/30 | 339.30 | 29.80 | 369.10 | 48/3.00 | 7/2.33 | 25.00 | 935.5 | 235.1 | 1170.6 | 9290 | 0.08509 | 916.1 | 231.8 |
| 380/50 | 382.00 | 49.50 | 431.50 | 54/3.00 | 7/3.00 | 27.00 | 1052.4 | 389.8 | 1442.2 | 12310 | 0.08509 | 1031.4 | 385.1 |
| 385/35 | 386.00 | 34.10 | 420.10 | 48/3.20 | 7/2.49 | 26.70 | 1064.3 | 268.5 | 1332.9 | 10480 | 0.07573 | 1042.2 | 265.3 |
| 435/55 | 434.03 | 59.30 | 490.60 | 54/3.20 | 7/3.20 | 28.80 | 1197.4 | 443.5 | 1640.9 | 13645 | 0.07478 | 1171.9 | 461.4 |
| 450/40 | 448.70 | 39.50 | 488.20 | 48/3.45 | 7/2.68 | 28.70 | 1237.1 | 311.1 | 1548.2 | 12075 | 0.06656 | 1211.5 | 307.3 |
| 490/65 | 490.30 | 63.60 | 553.90 | 54/3.40 | 7/3.40 | 30.60 | 1351.7 | 500.7 | 1852.4 | 15310 | 0.06434 | 1323.8 | 494.8 |
| 495/35 | 494.10 | 34.10 | 528.20 | 45/3.74 | 7/2.49 | 29.90 | 1363.0 | 268.5 | 1631.5 | 12180 | 0.05846 | 1334.1 | 265.3 |
| 510/45 | 510.20 | 45.30 | 555.50 | 48/3.68 | 7/2.87 | 30.70 | 1407.6 | 356.8 | 1764.3 | 13665 | 0.05655 | 1377.5 | 352.4 |
| 550/70 | 550.00 | 71.30 | 621.30 | 54/3.60 | 7/3.60 | 32.40 | 1515.4 | 561.3 | 2076.7 | 17060 | 0.05259 | 1485.0 | 554.7 |
| 560/50 | 561.70 | 49.50 | 611.20 | 48/3.86 | 7/3.00 | 32.20 | 1548.6 | 389.8 | 1938.5 | 14895 | 0.05140 | 1516.6 | 385.1 |
| 570/40 | 565.50 | 39.50 | 610.30 | 45/4.00 | 7/2.68 | 32.20 | 1559.1 | 311.1 | 1870.2 | 13900 | 0.05108 | 1526.9 | 307.3 |
| 650/45 | 698.50 | 45.30 | 653.49 | 45/4.30 | 7/2.87 | 34.40 | 1801.7 | 356.8 | 2158.5 | 15552 | 0.04420 | 1886.0 | 352.4 |
| 680/85 | 678.80 | 86.00 | 764.80 | 54/4.00 | 19/2.40 | 36.00 | 1870.9 | 683.9 | 2554.8 | 21040 | 0.04260 | 1832.8 | 669.1 |
| 1045/45 | 1045.58 | 45.30 | 1090.90 | 72/4.30 | 7/2.87 | 43.00 | 2882.7 | 356.8 | 3239.5 | 21787 | 0.02770 | 2823.1 | 352.4 |
Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Technical support: We will provide a professional technical support team to solve technical problems encountered by customers during product selection and use.
Order tracking: We will establish a comprehensive order tracking system and update customer order status in a timely manner to ensure that customers can keep track of the progress of their orders.
Product training: We will provide customers with product usage training, including product operation methods, maintenance, and other content, to help customers better use the product.
After sales service hotline: We will establish a 24-hour after-sales service hotline to provide customers with 24/7 technical support and service consultation, timely follow up on customers' after-sales service needs, and ensure that customers' problems are resolved in a timely manner.
After sales satisfaction survey: We will conduct regular after-sales satisfaction surveys to understand customer satisfaction with our after-sales service and continuously improve service quality based on customer feedback.The company has the ability to produce 100000 kilometers of various types of wires and cables annually.
