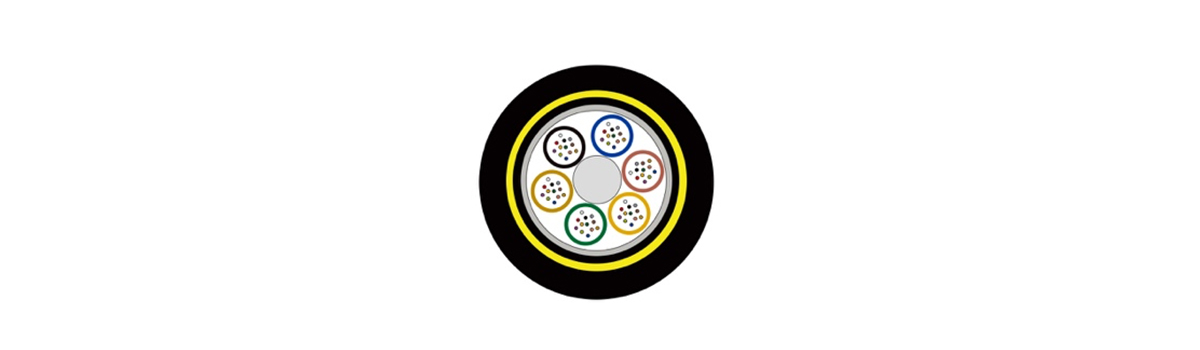

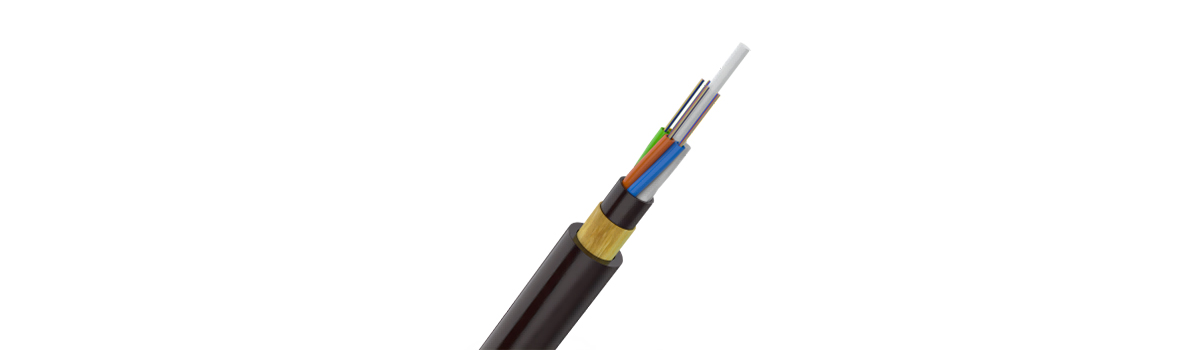

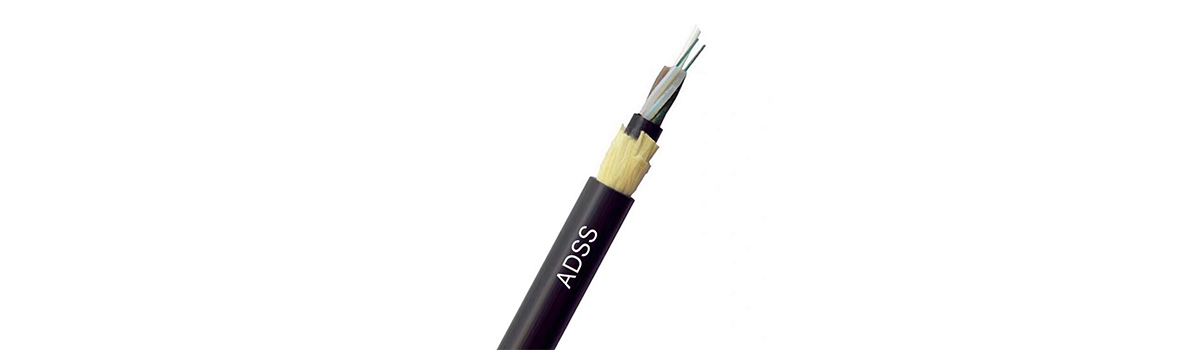

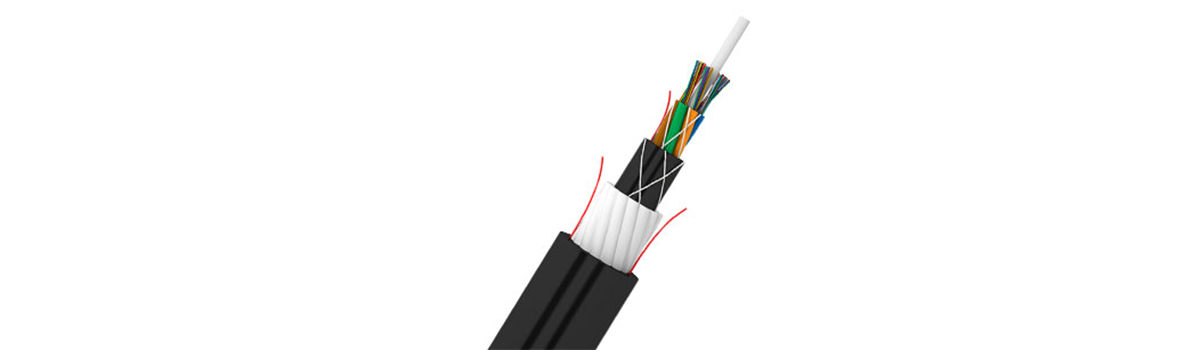

ADSS cable is also called all-dielectric self-supporting optical cable. The composition of the ADSS optical cable is: A composite optical cable made by winding the optical fiber bundle on the central strengthening member. And then going through protective measures such as insulation, waterproof, reinforcement, and sheath. ShuoBang cableCable ADSS cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.
ShuoBang cableCable is a leading manufacturer of aerial fiber optic cables in global. Our main products are ADSS Cable, OPGW Cable, OPPC Cable, and aerial optical cable fittings.
The company has a sound quality management system, high-quality technical team, advanced manufacturing equipment, reliable product quality, and best price. So that we have won a good reputation in the international market.
ShuoBang cableCable will be your reliable overhead optical fiber cable product partner.
Number of fibers up to 144
The nominal diameter and bending radius of the cable are small
The smaller circular profile further reduces wind and ice loads
The single cable diameter of 2 ~ 60 fibers simplifies the selection and splicing of hardware
A wide variety of B-route fibers
Excellent short-span ability
Effective and economical alternative short span
Light weight, easy to operate and install
A single MDPE sheath for fast and convenient cable preparation.
Number of fibers from 300 to 864
Enhanced technology enables efficient, cost-effective large-scale welding
Customized design by application
ShuoBang cable CABLE's water blocking technology makes the cable core more process-friendly
Increase bandwidth and carrying capacity in high-density applications
High-efficiency, low-cost large-scale welding, which can simplify installation and save labor costs
Depending on sag and load conditions, excellent performance is suitable for spans up to 1000 feet (300 meters)
| Single Jacket All-Dielectric Self-Supporting (ADSS) Optical Fiber Cable | |||||||
| Fibers | Structure | Outside Diameter of Cable(mm) | Weight(kg/km) | KN Max. Operating Tension | KN Max. Rated Tensile Strength | Max. Anti-crushing Force | Bending Radius Static / Dynamic |
| Long term, Short term | |||||||
| 2-30 | 1+6 | 10.3 | 82 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| 22-36 | 1+6 | 10.3 | 85 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| 38-60 | 1+6 | 10.8 | 91 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| 62-72 | 1+6 | 10.8 | 92 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| 74-84 | 1+7 | 11.5 | 106 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| 96-96 | 1+8 | 12.4 | 120 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| 98-108 | 1+9 | 13.1 | 130 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| 110-120 | 1+10 | 13.9 | 145 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| 122-132 | 1+11 | 14.5 | 160 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| 134-144 | 1+12 | 15.2 | 175 | 2.5 | 7.5 | 300; 1000 | 10D; 20D |
| Double Jacket All-Dielectric Self-Supporting (ADSS) Optical Fiber Cable | |||||||
| Fibers | Structure | Outside Diameter of Cable(mm) | Weight(kg/km) | KN Max. Operating Tension | KN Max. Rated Tensile Strength | Max. Anti-crushing Force | Bending Radius Static / Dynamic |
| Long term, Short term | |||||||
| 2-30 | 1+6 | 11.9 | 117 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
| 22-36 | 1+6 | 11.9 | 117 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
| 38-60 | 1+6 | 12.4 | 127 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
| 62-72 | 1+6 | 12.4 | 128 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
| 74-84 | 1+7 | 13 | 144 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
| 96-96 | 1+8 | 14 | 162 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
| 98-108 | 1+9 | 14.7 | 177 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
| 110-120 | 1+10 | 15.5 | 196 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
| 122-132 | 1+11 | 16.1 | 211 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
| 134-144 | 1+12 | 16.7 | 229 | 4 | 15 | 1000; 3000 | 12.5D; 25D |
