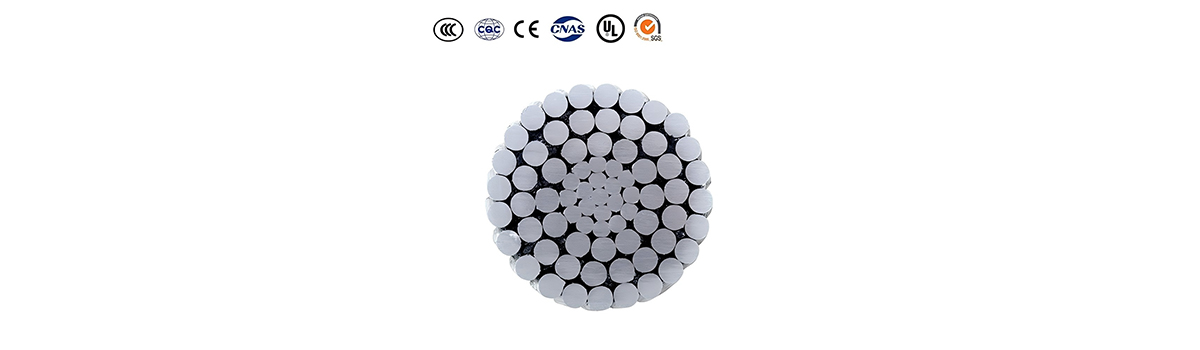

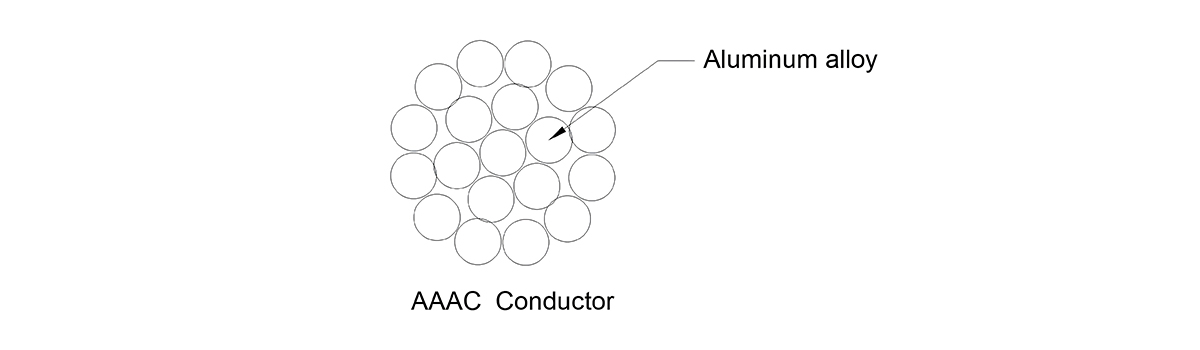

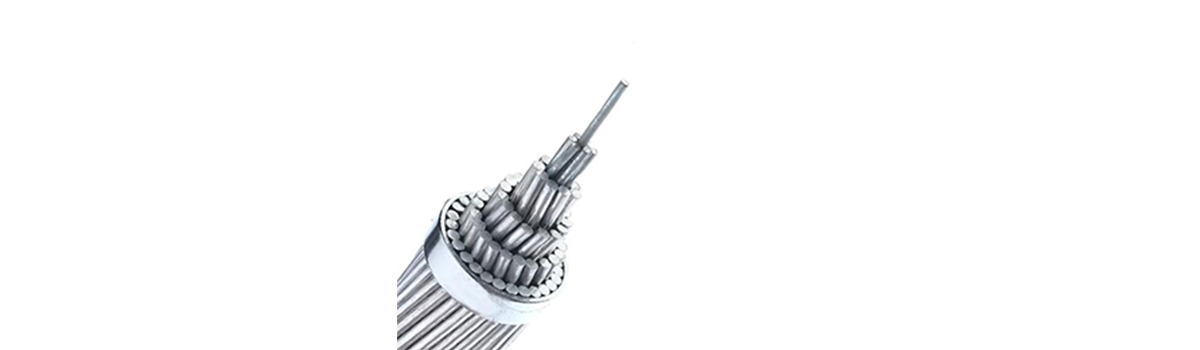

Cable Almelec, designated as AAAC conductor (All Aluminum Alloy Conductor), comprises aluminum alloy 6201 wires stranded together. The AAAC conductors specified in this standard are part of the ASTER family.
These cables find primary application in overhead lines within transmission and distribution electrical grids, where they are subjected to significant mechanical stress. Additionally, they serve as a sturdy support structure for suspending overhead electrical cables.
AAAC conductors are versatile, suitable for medium to high voltage transmission lines across diverse voltage levels. Currently, they are extensively employed in power transmission across vast rivers, regions prone to heavy icing, and other unique geographical terrains.
NF C 34-125
570-AL4 ASTER 570 Cable
Aluminum Alloy Conductor (AAAC)
Cable 148 sq mm
Cable 34.4 sq mm
Cable 93 sq mm
Cable 54.6 sq mm
Cable 570 sq mm
AAAC conductors have a wide range of applications and are suitable for medium and high voltage transmission lines of various voltage levels. Currently, they are widely used in power transmission across wide rivers, icy areas, and other special geographical terrains.
| code name | Area (square millimeters) | Number of wires | Wire diameter (mm) |
Total conductor diameter (mm) |
Tensile strength of steel wire |
Conductor rated strength daN |
Maximum DC resistance at 20℃ |
Line weight (kg/km) | Elastic modulus* hbar | Linear expansion coefficient */oc |
| ASTER 22 | 21.99 | 7 | 2 | 6 | 32.4 | 710 | 1.5 | 60.2 | 6200 | 23.10-6 |
| ASTER 34.4 | 34.36 | 7 | 2.5 | 7.5 | 32.4 | 1105 | 0.958 | 94.1 | 6200 | 23.10-6 |
| ASTER 54.6 | 54.55 | 7 | 3.15 | 9.45 | 32.4 | 1755 | 0.603 | 149 | 6200 | 23.10-6 |
| ASTER 75.5 | 75.54 | 19 | 2.25 | 11.25 | 32.4 | 2430 | 0.438 | 208 | 6000 | 23.10-6 |
| ASTER 117 | 116.98 | 19 | 2.8 | 14 | 32.4 | 3765 | 0.283 | 322 | 6000 | 23.10-6 |
| ASTER 148 | 148.01 | 19 | 3.15 | 15.75 | 32.4 | 4765 | 0.224 | 407 | 6000 | 23.10-6 |
| ASTER 181.6 | 181.62 | 37 | 2.5 | 17.5 | 32.4 | 5845 | 0.183 | 500 | 5700 | 23.10-6 |
| ASTER 228 | 227.83 | 37 | 2.8 | 19.6 | 32.4 | 7340 | 0.146 | 627 | 5700 | 23.10-6 |
| ASTER 288 | 288.34 | 37 | 3.15 | 22.05 | 32.4 | 9280 | 0.115 | 794 | 5700 | 23.10-6 |
| ASTER 366 | 366.22 | 37 | 3.55 | 24.85 | 32.4 | 11785 | 0.0905 | 1009 | 5700 | 23.10-6 |
| ASTER 570 | 570.22 | 61 | 3.45 | 31.05 | 32.4 | 18360 | 0.0583 | 1574 | 5400 | 23.10-6 |
| ASTER 851 | 850.66 | 91 | 3.45 | 37.95 | 32.4 | 27390 | 0.0391 | 2354 | 5250 | 23.10-6 |
| ASTER 1144 | 1143.51 | 91 | 4 | 44 | 31.9 | 36260 | 0.0292 | 3164 | 5250 | 23.10-6 |
| ASTER 1600 | 1595.93 | 127 | 4 | 52 | 31.9 | 50640 | 0.0206 | 4425 | 5050 |
23.10-6
|
| 148 square millimeter cable | |||
| Technical Data Sheet | |||
| 148 mm² ASTER | |||
| NO | describe | unit | data |
| 1 | Type/Code Name | — | Almelec 148 |
| 2 | Material | — | aluminum alloy |
| 3 | standard | — | IEC 61089、NFC 34 125、NF EN 50182 |
| 4 | Cross-sectional area | millimeters² | 148 |
| 34.4 mm² cable | |||
| Technical Data Sheet | |||
| 34.4 mm² ASTER | |||
| NO | describe | unit | data |
| 1 | Type/Code Name | — | Almelec 34.4 |
| 2 | Material | — | 铝合金 |
| 3 | standard | — | IEC 61089、NFC 34 125、NF EN 50182 |
| 4 | Cross-sectional area | millimeters² | 34.4 |
| 93 mm² cable | |||
| Technical Data Sheet | |||
| 93 mm² ASTER | |||
| NO | describe | unit | data |
| 1 | Type/Code Name | — | Almelec 93 |
| 2 | Material | — | aluminum alloy |
| 3 | standard | — | IEC 61089、NFC 34 125、NF EN 50182 |
| 4 | Cross-sectional area | millimeters² | 93 |
| 54.6 mm² cable | |||
| Technical Data Sheet | |||
| 54.6 mm² ASTER | |||
| NO | describe | unit | data |
| 1 | Type/Code Name | — | Almelec 54.6 |
| 2 | Material | — | aluminum alloy |
| 3 | standard | — | IEC 61089、NFC 34 125、NF EN 50182 |
| 4 | Cross-sectional area | millimeters² | 54.6 |
| 570 mm² cable | |||
| Technical Data Sheet | |||
| 570 mm² ASTER | |||
| NO | describe | unit | data |
| 1 | Type/Code Name | — | Almelec 570 |
| 2 | Material | — | aluminum alloy |
| 3 | standard | — | IEC 61089、NFC 34 125、NF EN 50182 |
| 4 | Cross-sectional area | millimeters² | 570 |
Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Technical support: We will provide a professional technical support team to solve technical problems encountered by customers during product selection and use.
Order tracking: We will establish a comprehensive order tracking system and update customer order status in a timely manner to ensure that customers can keep track of the progress of their orders.
Product training: We will provide customers with product usage training, including product operation methods, maintenance, and other content, to help customers better use the product.
After sales service hotline: We will establish a 24-hour after-sales service hotline to provide customers with 24/7 technical support and service consultation, timely follow up on customers' after-sales service needs, and ensure that customers' problems are resolved in a timely manner.
After sales satisfaction survey: We will conduct regular after-sales satisfaction surveys to understand customer satisfaction with our after-sales service and continuously improve service quality based on customer feedback.The company has the ability to produce 100000 kilometers of various types of wires and cables annually.
