GSW Wire-Galvanized Steel Wire/Strand Bare concentric-lay-stranded conductors are made from bare, hard-drawn, round, aluminum clad steel wires for general use of electrical purposes.
Messenger wires, overhead ground or static wires for distribution and transmission lines, communications and signal lines, antenna towers, masts, stacks and other structures
ASTM A-475，IEC 61089，BS 183
Tensile strength and zinc-clad of steel wire have different grades.The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning strike.

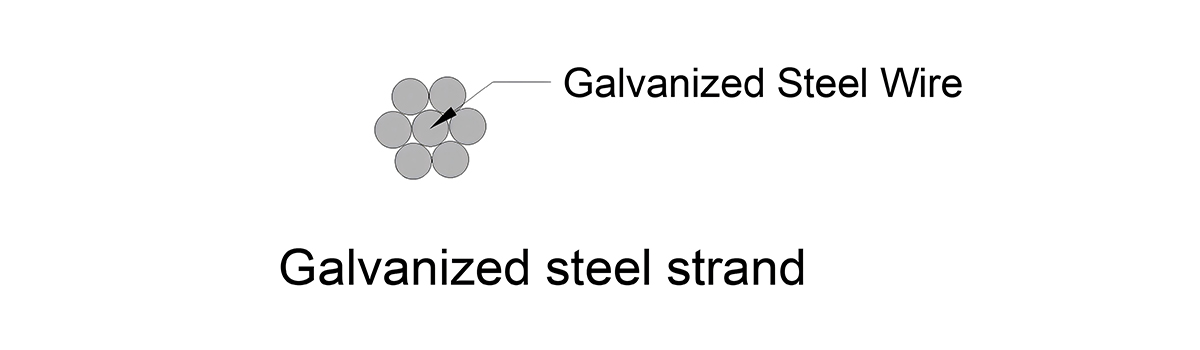

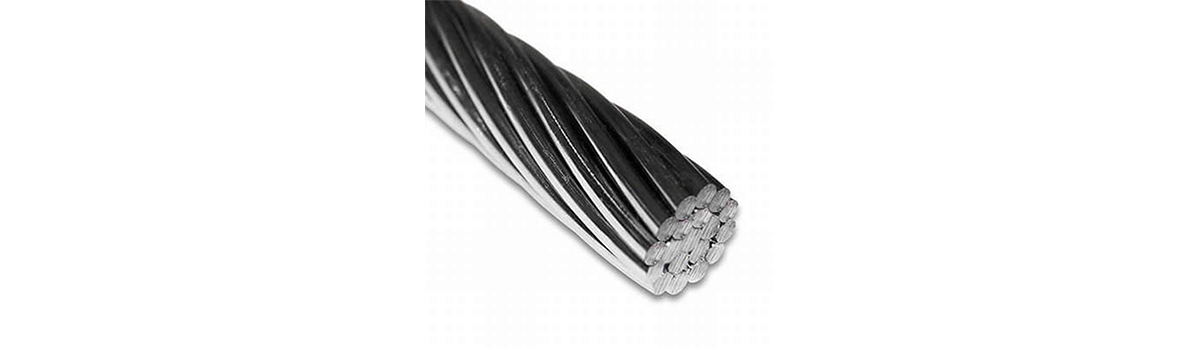

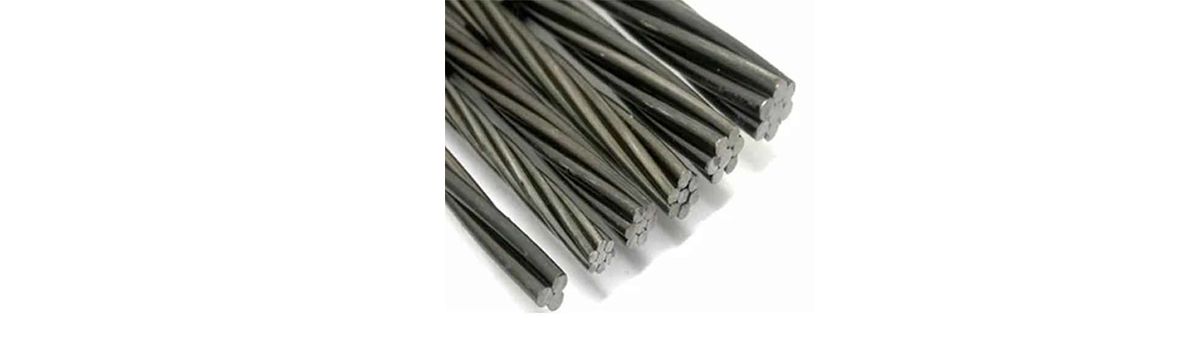

3 4 5 7 19 galvanized steel wires twisted together
| GSW Wire ASTM A 475 | |||||||||
| Nominal diameter of strand |
Number of Wires in Strand | Nominal Diameter of Coated Wire in Strand |
Approx weight of strand |
Minimun Breaking Strength of Strand | |||||
| Utilities Grade |
Common Grade | Siemens-Martin Grade |
High- Strength Grade |
Extra- high Strength Grade |
|||||
| In | mm | mm | kg/km | KN | kN | kN | KN | kN | |
| 1/8 | 3.18 | 7 | 1.04 | 48 | - | 2.402 | 4.048 | 5.916 | 8.14 |
| 5/32 | 3.97 | 7 | 1.32 | 76 | - | 3.87 | 6.539 | 9.519 | 13.078 |
| 3/16 | 4.76 | 7 | 1.57 | 109 | - | 5.115 | 8.452 | 12.677 | 17.748 |
| 3/16 | 4.76 | 7 | 1.65 | 119 | 10.676 | - | - | - | |
| 7/32 | 5.56 | 3 | 2.64 | 131 | - | 6.228 | 10.409 | 15.569 | 21.796 |
| 7/32 | 5.56 | 7 | 1.83 | 146 | - | 6.85 | 11.387 | 17.126 | 24.02 |
| 1/4 | 6.35 | 3 | 3.05 | 174 | 14.012 | 8.274 | 13.523 | 21.04 | 29.981 |
| 1/4 | 6.35 | 3 | 3.05 | 174 | 20.017 | - | - | - | - |
| 1/4 | 6.35 | 7 | 2.03 | 180 | - | 8.452 | 14.012 | 21.129 | 29.581 |
| 9/32 | 7.14 | 3 | 3.3 | 204 | - | 9.252 | 15.035 | 23.398 | 33.362 |
| 9/32 | 7.14 | 7 | 2.36 | 244 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 |
| 5/16 | 7.94 | 3 | 3.68 | 255 | 28.913 | 11.076 | 18.193 | 28.246 | 40.479 |
| 5/16 | 7.94 | 7 | 2.64 | 305 | - | 14.234 | 23.798 | 35.586 | 49.82 |
| 5/16 | 7.94 | 7 | 2.77 | 335 | 26.689 | - | - | - | - |
| 3/8 | 9.52 | 3 | 4.19 | 328 | 37.81 | 14.813 | 24.732 | 37.187 | 52.489 |
| 3/8 | 9.52 | 7 | 3.05 | 407 | 51.155 | 18.905 | 30.915 | 48.04 | 68.503 |
| 7/16 | 11.11 | 7 | 3.68 | 595 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 |
| 1/2 | 12.7 | 7 | 4.19 | 770 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 |
| 1/2 | 12.7 | 19 | 2.54 | 751 | - | 33.895 | 56.492 | 84.961 | 118.768 |
| 9/16 | 14.29 | 7 | 4.78 | 1000 | - | 42.703 | 69.837 | 108.981 | 155.688 |
| 9/16 | 14.29 | 19 | 2.87 | 949 | - | 42.881 | 71.616 | 107.202 | 149.905 |
| 5/8 | 15.88 | 7 | 5.26 | 1211 | - | 51.599 | 84.961 | 131.667 | 188.605 |
| 5/8 | 15.88 | 19 | 3.18 | 1186 | - | 48.93 | 80.513 | 124.995 | 178.819 |
| 3/4 | 19.05 | 19 | 3.81 | 1721 | - | 71.172 | 116.543 | 181.487 | 259.331 |
| 7/8 | 22.22 | 19 | 4.5 | 2356 | - | 97.416 | 159.691 | 248.211 | 354.523 |
| 1 | 25.4 | 19 | 5.08 | 3089 | - | 127.664 | 209.066 | 325.61 | 464.839 |
| 1 | 25.4 | 37 | 3.63 | 3065 | - | 125.885 | 205.508 | 319.827 | 456.832 |
| 1 1/8 | 28.58 | 37 | 4.09 | 4010 | 160.136 | 262 | 407.457 | 581.827 | |
| 1 1/4 | 31.75 | 37 | 4.55 | 4840 | 198.391 | 324.72 | 505.318 | 721.502 | |
| GSW Wire BS 183 | |||||||||||
| Sectional Area | Stranding | Diameter of EARTH WIRE |
Weight | Rated Strength | |||||||
| No.of Wires |
Individual wire diameter |
Grade 350 |
Grade 480 |
Grade 700 |
Grade 850 |
Grade 1000 |
Grade 1150 |
Grade 1300 |
|||
| mm² | No. | mm | mm | Kg/km | KN | KN | KN | KN | KN | KN | KN |
| 7.63 | 3 | 1.8 | 3.9 | 60 | 2.65 | 3.66 | - | - | - | - | - |
| 16.55 | 3 | 2.65 | 5.7 | 130 | 5.8 | 7.95 | - | - | - | - | - |
| 24.89 | 3 | 3.25 | 7 | 195 | 8.7 | 11.95 | - | - | - | - | 一 |
| 37.7 | 3 | 4 | 8.6 | 295 | 13.2 | 18.1 | - | - | - | - | - |
| 10.18 | 4 | 1.8 | 4.4 | 80 | 3.55 | 4.9 | - | - | - | - | - |
| 22.06 | 4 | 2.65 | 6.4 | 172 | 7.7 | 10.6 | - | - | |||
| 33.18 | 4 | 3.25 | 7.9 | 260 | 11.6 | 15.9 | - | - | - | - | - |
| 50.27 | 4 | 4 | 9.7 | 390 | 17.6 | 24.1 | 35.2 | - | - | - | - |
| 8.84 | 5 | 1.5 | 4.1 | 69 | 3.1 | 4.24 | 6.18 | - | |||
| 12.72 | 5 | 1.8 | 4.9 | 95 | 4.45 | 6.1 | 8.9 | - | - | - | - |
| 27.58 | 5 | 2.65 | 7.2 | 220 | 9.65 | 13.25 | 19.3 | - | - | ||
| 41.48 | 5 | 3.25 | 8.8 | 320 | 14.5 | 19.9 | 29 | - | - | - | - |
| 62.83 | 5 | 4 | 10.8 | 490 | 22 | 30.15 | 43.95 | - | - | ||
| 1.72 | 7 | 0.56 | 1.7 | 14 | 0.6 | 0.83 | 1.2 | 1.7 | 1.98 | 2.24 | |
| 2.77 | 7 | 0.71 | 2.1 | 28 | 0.97 | 1.33 | 1.94 | - | 2.75 | 3.19 | 3.6 |
| 3.97 | 7 | 0.85 | 2.6 | 31 | 1.39 | 1.9 | 2.8 | 3.95 | 4.57 | 5.15 | |
| 4.45 | 7 | 0.9 | 2.7 | 35 | 1.55 | 2.14 | 3.1 | - | 4.45 | 5.12 | 5.8 |
| 5.5 | 7 | 1 | 3 | 43 | 1.92 | 2.64 | 3.85 | - | 5.5 | 6.32 | 7.15 |
| 8.59 | 7 | 1.25 | 3.8 | 67 | 3.01 | 4.1 | 6 | - | 8.55 | 9.88 | 11.15 |
| 10.78 | 7 | 1.4 | 4.2 | 84 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14 |
| 11.24 | 7 | 1.43 | 4.3 | 86 | 3.85 | 5.28 | 7.7 | 9.35 | 11 | 12.65 | 14.3 |
| 14.07 | 7 | 1.6 | 4.8 | 110 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 |
| 17.81 | 7 | 1.8 | 5.4 | 140 | 6.23 | 8.55 | 12.45 | - | 17.8 | 20.5 | 23.2 |
| 21.99 | 7 | 2 | 6 | 170 | 7.7 | 10.55 | 15.4 | - | 22 | 25.3 | 38.6 |
| 30.62 | 7 | 2.36 | 7.1 | 240 | 10.7 | 14.7 | 21.4 | - | 30.6 | 35.2 | 39.8 |
| 38.61 | 7 | 2.65 | 8 | 300 | 13.5 | 18.5 | 27 | - | 38.6 | 44.4 | 50.2 |
| 49.48 | 7 | 3 | 9 | 392 | 17.3 | 23.75 | 34.65 | - | 49.5 | 56.9 | 64.3 |
| 54.55 | 7 | 3.15 | 9.5 | 430 | 19.1 | 26.2 | 38.2 | - | 54.55 | 62.75 | 70.9 |
| 58.07 | 7 | 3.25 | 9.8 | 460 | 20.3 | 27.85 | 40.65 | - | 58.05 | 66.8 | 75.5 |
| 73.24 | 7 | 3.65 | 11 | 570 | 25.6 | 35.15 | 51.25 | - | 73.25 | 84.2 | 95.2 |
| 87.96 | 7 | 4 | 12 | 690 | 30.9 | 42.2 | 61.6 | - | 88 | 101 | 114 |
| 99.3 | 7 | 4.25 | 12.8 | 780 | 34.75 | 47.65 | 69.5 | - | 99.3 | 114 | 129 |
| 124.04 | 7 | 4.75 | 14 | 970 | 43.4 | 59.45 | 86.8 | - | 124 | 142.7 | 161.3 |
| 14.92 | 19 | 1 | 5 | 120 | 5.22 | 7.16 | 10.45 | - | 14.92 | 17.16 | 19.4 |
| 23.32 | 19 | 1.25 | 6.3 | 180 | 8.16 | 11.19 | 16.32 | - | 23.32 | 26.81 | 30.31 |
| 29.25 | 19 | 1.4 | 7 | 230 | 10.24 | 14.04 | 14.04 | - | 29.25 | 33.64 | 38.02 |
| 38.2 | 19 | 1.6 | 8 | 300 | 13.37 | 18.34 | 26.75 | - | 38.2 | 43.93 | 49.66 |
| 59.69 | 19 | 2 | 10 | 470 | 20.9 | 28.65 | 41.78 | 50.7 | 59.69 | 68.64 | 77.6 |
| 93.27 | 19 | 2.5 | 12.5 | 730 | 32.65 | 44.8 | 65.29 | 79.3 | 93.27 | 107.3 | 121.3 |
| 134.3 | 19 | 3 | 15 | 1050 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 |
| 188.06 | 19 | 3.55 | 17.8 | 1470 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 |
| 238.76 | 19 | 4 | 20 | 1870 | 83.55 | 114.6 | 167.1 | 203 | 238.7 | 274.6 | 310.4 |
| 336.69 | 19 | 4.75 | 23.8 | 2630 | 117.85 | 161.6 | 235.7 | 286 | 336.7 | 387.2 | 437.7 |
| GSW Wire AS 1222.1 | ||||||
| Standing and wire diameter |
Approx. overall diameter |
Cross- section area |
Approx. mass per km |
Calculated breaking load (CBL) |
Equivalent aluminium area |
Typical d.c. resistance per km at 20℃ |
| mm | mm | m㎡ | kg | KN | m㎡ | Ω |
| 3/2.00 | 4.31 | 9.426 | 74 | 11.7 | 1.4 | 20 |
| 3/2.75 | 5.93 | 17.82 | 140 | 22.2 | 2.6 | 11 |
| 7/2.00 | 6 | 21.99 | 173 | 26 | 3.2 | 8.7 |
| 7/2.75 | 8.25 | 41.58 | 328 | 49 | 6.1 | 4.6 |
| 7/3.25 | 9.75 | 58.07 | 458 | 68.7 | 8.6 | 3.3 |
| 7/3.75 | 11.3 | 77.28 | 609 | 91.3 | 11 | 2.5 |
| 19/2.00 | 10 | 59.7 | 473 | 70.5 | 8.8 | 3.2 |
| 19/2.75 | 13.8 | 112.9 | 894 | 133 | 17 | 1.7 |
| 19/3.25 | 16.3 | 157.6 | 1250 | 186 | 23 | 1.2 |
| GSW Wire DIN 48201 | |||||||||
| Nominal Area |
Sectional Area |
Stranding | Diameter of EARTHWIRE |
Weight | Rated Strength | ||||
| No.of Wires | Individual wire diameter |
STI | ST II | ST III | ST IV | ||||
| m㎡ | m㎡ | No. | mm | mm | Kg/km | KN | KN | KN | KN |
| 25 | 24.25 | 7 | 2.1 | 6.3 | 192 | 8.98 | 15.9 | 30.18 | 36.17 |
| 35 | 34.36 | 7 | 2.5 | 7.5 | 272 | 12.73 | 22.52 | 42.76 | 51.25 |
| 50 | 49.48 | 7 | 3 | 9 | 391 | 18.33 | 32.43 | 61.58 | 73.8 |
| 50 | 48.35 | 19 | 1.8 | 9 | 384 | 17.91 | 31.69 | 60.17 | 72.11 |
| 70 | 65.81 | 19 | 2.1 | 10.5 | 522 | 24.38 | 43.14 | 81.9 | 98.16 |
| 95 | 93.27 | 19 | 2.5 | 12.5 | 741 | 34.56 | 61.14 | 116.07 | 139.11 |
| 120 | 116.99 | 19 | 2.8 | 14 | 929 | 43.34 | 76.69 | 145.59 | 174.49 |
| GSW Wire GOST 3063 | ||||||||||
| ctional Area | Stranding Center wireInside Laver | Diameter of EARTHVIRE | Weight | Rated Strength | ||||||
| 1370 | 1570 | 1670 | 1770KN | 1880KN | 1960KN | |||||
| m㎡ | 1 wire | 18 wire | mm | Kg/km | KN | KN | KN | |||
| 29.48 | 1.5 | 1.4 | 7.1 | 253 | 36.35 | 41.55 | 44.1 | 45.85 | 48 | 50.560. |
| 33.82 | 1.6 | 1.5 | 7.6 | 290.5 | 41.65 | 47.65 | 50.55 | 52.75 | 55.05 | |
| 38.46 | 1.7 | 1.6 | 8.1 | 330 | 44.4 | 54.2 | 57.6 | 59.95 | 62.6 | 65.974. |
| 43.4 | 1.8 | 1.7 | 8.6 | 372.5 | 53.55 | 61.2 | 65 | 67.7 | 70.65 | |
| 48.64 | 19 | 1.8 | 9.1 | 417.5 | 59.95 | 68.6 | 72.85 | 75.9 | 79.2 | 83.3 |
| 60.35 | .2.2 | 2 | 10 | 519 | 74.45 | 85.1 | 94.1 | 93.5 | 98 | 102 |
| 72.95 | 2.4 | 2.2 | 11 | 627.4 | 89.95 | 102 | 109 | 112.5 | 118.5 | 123.5 |
| 86.74 | 2.6 | 2.4 | 12 | 746 | 106 | 122 | 129 | 134 | 140.5 | 147 |
| 101.72 | 2.8 | 2.6 | 13 | 873 | 124.5 | 143 | 151.5 | 158 | 165 | 173.5 |
| 117.9 | 3 | 2.8 | 14 | 1050 | 145.5 | 166 | 176 | 183.5 | 190 | 200 |
| 135.28 | 3.2 | 3 | 15 | 1160 | 166.5 | 190 | 202 | 210.5 | 220 | 231.5 |
| 153.84 | 3.4 | 3.2 | 16 | 1320 | 189.5 | 216.5 | 226 | 236.5 | - | |
