Extensively review industrial equipment, automation systems, mechanical control and other fields.
Used for power control and monitoring systems to ensure the stability of signal transmission.
Transmit control signals in robots and smart devices.
Used in control systems for transportation equipment such as railways and subways.
Control and monitor in building equipment and facilities.

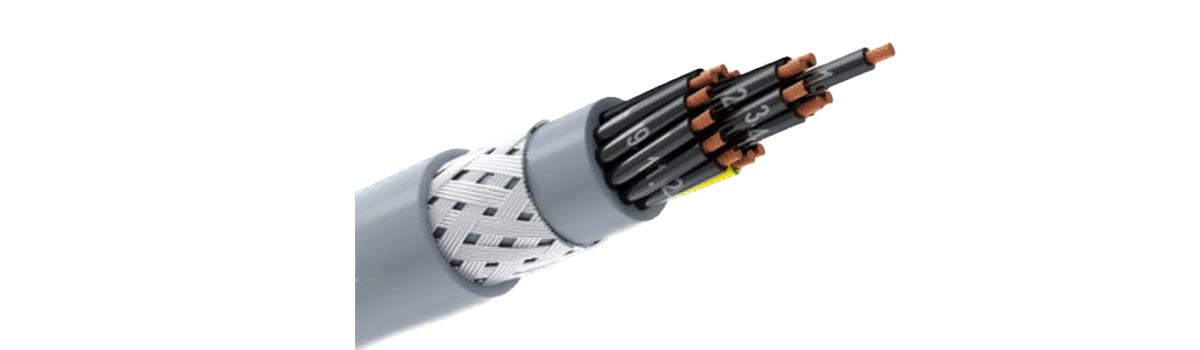

| PVC Control Cable with Steel Wire Braiding | |||||
| Number of cores x Cross-section | Number of wire in conductor | Nominal thickness of Insulation |
Approx overall diameter | Approx weight | Max DC resistance at 20℃ |
| Nosxmm2 | Nos | mm | mm | kg/km | ohm/km |
| 3x5A 1. |
1 | 0.8 | 13.3 | 104.0764659 | 12.1 |
| 4x1.5A | 1 | 0.8 | 13.7 | 108.3448724 | 12.1 |
| 5x1.5A | 1 | 0.8 | 14.5 | 115.5194281 | 12.1 |
| 6x1.5A | 1 | 0.8 | 15.4 | 123.420521 | 12.1 |
| 7x1.5A | 1 | 0.8 | 16.3 | 131.6848826 | 12.1 |
| 8x1.5A | 1 | 0.8 | 16.3 | 131.6848826 | 12.1 |
| 10x1.5A | 1 | 0.8 | 17.2 | 139.9492442 | 12.1 |
| 12x1.5A | 1 | 0.8 | 19.3 | 159.2932994 | 12.1 |
| 14x1.5A | 1 | 0.8 | 19.8 | 163.5617059 | 12.1 |
| 16x1.5A | 1 | 0.8 | 20.6 | 170.7362616 | 12.1 |
| 19x1.5A | 1 | 0.8 | 21.5 | 178.6373546 | 12.1 |
| 24x1.5A | 1 | 0.8 | 22.4 | 186.9017162 | 12.1 |
| 27x1.5A | 1 | 0.8 | 25.5 | 222.4096775 | 12.1 |
| 30x1.5A | 1 | 0.8 | 26.1 | 228.9620323 | 12.1 |
| 37x1.5A | 1 | 0.8 | 27.3 | 244.0149007 | 12.1 |
| 2x2.5A | 1 | 0.8 | 29.2 | 270.2262167 | 12.1 |
| 3x2.5A | 1 | 0.8 | 14 | 110.97857 | 7.41 |
| 4x2.5A | 1 | 0.8 | 14.6 | 115.7918795 | 7.41 |
| 5x2.5A | 1 | 0.8 | 15.4 | 123.8746068 | 7.41 |
| 6x2.5A | 1 | 0.8 | 16.4 | 132.6838714 | 7.41 |
| 7x2.5A | 1 | 0.8 | 17.4 | 142.0380389 | 7.41 |
| 8x2.5A | 1 | 0.8 | 17.4 | 142.0380389 | 7.41 |
| 10x2.5A | 1 | 0.8 | 18.5 | 151.3922064 | 7.41 |
| 12x2.5A | 1 | 0.8 | 20.9 | 173.0975078 | 7.41 |
| 14x2.5A | 1 | 0.8 | 21.4 | 177.9108173 | 7.41 |
| 16x2.5A | 1 | 0.8 | 22.3 | 185.9935446 | 7.41 |
| 19x2 .5A |
1 | 0.8 | 23.3 | 194.8028091 | 7.41 |
| PVC Control Cable with Steel Wire Braiding | |||||
| Number of cores x Cross-section | Number of wire in conductor | Nominal thickness of Insulation |
Approx overall diameter | Approx weight | Max.DC resistance at 20℃ |
| Nosxmm2 | Nos | mm | mm | kg/km | ohm/km |
| 3x1.5A | 1 | 0.8 | 13.3 | 104.0764659 | 12.1 |
| 4x1.5A | 1 | 0.8 | 13.7 | 108.3448724 | 12.1 |
| 5x1.5A | 1 | 0.8 | 14.5 | 115.5194281 | 12.1 |
| 6x1.5A | 1 | 0.8 | 15.4 | 123.420521 | 12.1 |
| 7x1.5A | 1 | 0.8 | 16.3 | 131.6848826 | 12.1 |
| 8x1.5A | 1 | 0.8 | 16.3 | 131.6848826 | 12.1 |
| 10x1.5A | 1 | 0.8 | 17.2 | 139.9492442 | 12.1 |
| 12x1.5A | 1 | 0.8 | 19.3 | 159.2932994 | 12.1 |
| 14x1.5A | 1 | 0.8 | 19.8 | 163.5617059 | 12.1 |
| 16x1.5A | 1 | 0.8 | 20.6 | 170.7362616 | 12.1 |
| 19x1.5A | 1 | 0.8 | 21.5 | 178.6373546 | 12.1 |
| 24x1.5A | 1 | 0.8 | 22.4 | 186.9017162 | 12.1 |
| 27x1.5A | 1 | 0.8 | 25.5 | 222.4096775 | 12.1 |
| 30x1.5A | 1 | 0.8 | 26.1 | 228.9620323 | 12.1 |
| 37x1.5A | 1 | 0.8 | 27.3 | 244.0149007 | 12.1 |
| 2x2.5A | 1 | 0.8 | 29.2 | 270.2262167 | 12.1 |
| 3x2.5A | 1 | 0.8 | 14 | 110.97857 | 7.41 |
| 4x2.5A | 1 | 0.8 | 14.6 | 115.7918795 | 7.41 |
| 5x2.5A | 1 | 0.8 | 15.4 | 123.8746068 | 7.41 |
| 6x2.5A | 1 | 0.8 | 16.4 | 132.6838714 | 7.41 |
| 7x2.5A | 1 | 0.8 | 17.4 | 142.0380389 | 7.41 |
| 8x2.5A | 1 | 0.8 | 17.4 | 142.0380389 | 7.41 |
| 10x2.5A | 1 | 0.8 | 18.5 | 151.3922064 | 7.41 |
| 12x2.5A | 1 | 0.8 | 20.9 | 173.0975078 | 7.41 |
| 14x2.5A | 1 | 0.8 | 21.4 | 177.9108173 | 7.41 |
| 16x2.5A | 1 | 0.8 | 22.3 | 185.9935446 | 7.41 |
| 19x2.5A | 1 | 0.8 | 23.3 | 194.8028091 | 7.41 |
Product Introduction: When customers inquire about the product, we will provide a detailed product introduction, including product technical parameters, scope of application, and other information, to help customers better understand the product.
Solution customization: Based on the specific needs of customers, we will provide personalized solution customization services to meet their specific requirements.
Sampling inspection and acceptance: We guarantee that every batch of cables produced undergoes strict factory inspection and acceptance.
Technical support: We will provide a professional technical support team to solve technical problems encountered by customers during product selection and use.
Order tracking: We will establish a comprehensive order tracking system and update customer order status in a timely manner to ensure that customers can keep track of the progress of their orders.
Product training: We will provide customers with product usage training, including product operation methods, maintenance, and other content, to help customers better use the product.
After sales service hotline: We will establish a 24-hour after-sales service hotline to provide customers with 24/7 technical support and service consultation, timely follow up on customers' after-sales service needs, and ensure that customers' problems are resolved in a timely manner.
After sales satisfaction survey: We will conduct regular after-sales satisfaction surveys to understand customer satisfaction with our after-sales service and continuously improve service quality based on customer feedback.The company has the ability to produce 100000 kilometers of various types of wires and cables annually.
