APPLICATION
Used by Distribution Network Operators (DNOs) such as UKPN, ENW, NPG, SSE etc to provide the final connection to domestic properties. Suitable for sub main distribution boxes, Street lighting systems and high rise buildings.

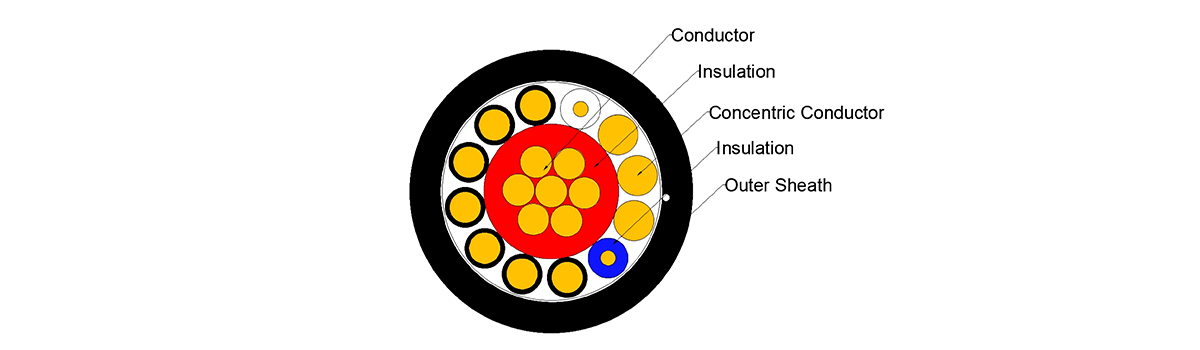

Conductor:Solid Aluminium Conductor
Insulation:Cross Link Polyethylene (XLPE)
Neutral Conductor:Plain copper wire covered in blue polymeric compound
Earth Continuity Conductor: Plain Copper
String Separator:Non Hygroscopic separator

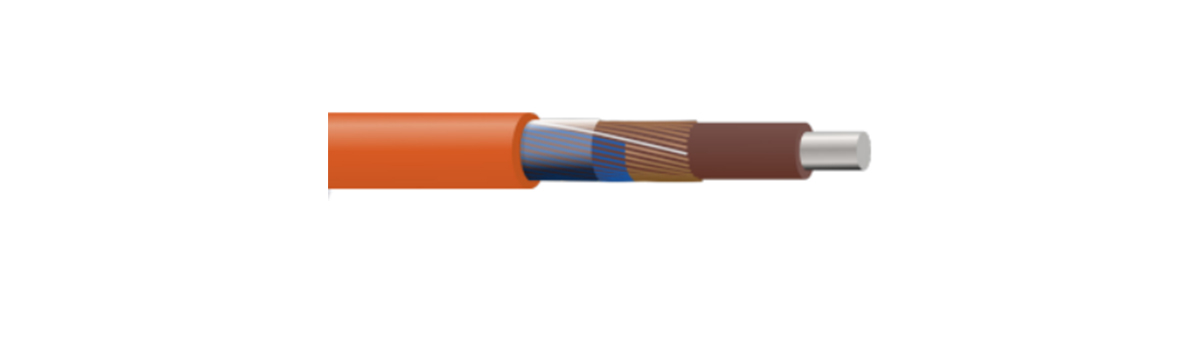

Sheath:available in both Poly Vinyl Chloride (PVC) and Low Smoke Zero Halogen (LSZH)
Sheath Colour: Black (PVC) Orange (LSZH)
BS7870 -3.22
BS EN 50266-2-4
BS EN 60754
BS EN 50268 1 & 2
BS EN 60228
Voltage Rating:600V / 1000V
Temperature Limits:-15°C to +70°C
Minimum Bending Radius:As per cable manufacturer datasheet
Should not be installed at temperatures below 0°C
| ALUMINIUM SPLIT CONCENTRIC CABLE - DIMENSIONS | |||||
| CCC CODE | CONDUCTOR SIZE (MM2 ) |
NUMBER OF CORES |
AVG. NOMINAL DIAMETER (MM) |
MAXIMUM VOLTAGE RATING |
WEIGHT (kg/km) |
| 25SPLITCONAL | 25 | 1 | 15 | 0.6/1kV | 490 |
| 35SPLITCONAL | 35 | 1 | 16 | 0.6/1kV | 610 |
| 35SPLITCONAL | 25 | 3 | 23.5 | 0.6/1kV | 830 |
| 3X35SPLITCONAL | 35 | 3 | 26 | 0.6/1kV | 1030 |
| 25SPLITCONALOR | 25 | 1 | 15 | 0.6/1kV | 490 |
| 35SPLITCONALOR | 35 | 1 | 16 | 0.6/1kV | 610 |
| 3X25SPLITCONALOR | 25 | 3 | 23.5 | 0.6/1kV | 830 |
| 3X35SPLITCONALOR | 35 | 3 | 26 | 0.6/1kV | 1030 |
| ALUMINIUM SPLIT CONCENTRIC CABLE – CURRENT CARRYING CAPACITY | ||||
| NUMBER OF CORES |
NOMINAL CROSS SECTIONAL AREA (MM2) |
CONTINUOUS CURRENT RATING | ||
| CLIPPED DIRECT AMPS |
IN CONDUIT ON WALL AMPS |
IN AIR AMPS |
||
| 1 | 25 | 119 | 105 | 127 |
| 1 | 35 | 147 | 128 | 158 |
| 3 | 25 | 90 | 84 | 97 |
| 3 | 35 | 112 | 103 | 120 |
| ALUMINIUM SPLIT CONCENTRIC CABLE – ELECTRICAL CHARACTERISTICS | ||||
| NOMINAL CROSS SECTIONAL AREA (MM2) |
MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C - PHASE OHMS/KM |
MAXIMUM AC RESISTANCE OF CONDUCTOR AT 90°C - PHASE OHMS/KM |
MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C - NEUTRAL OHMS/KM |
MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C - EARTH OHMS/KM |
| 1 X 25 | 0.32 | 0.411 | 0.32 | 0.056 |
| 1 X 35 | 0.164 | 0.211 | 0.164 | 0.054 |
